Description

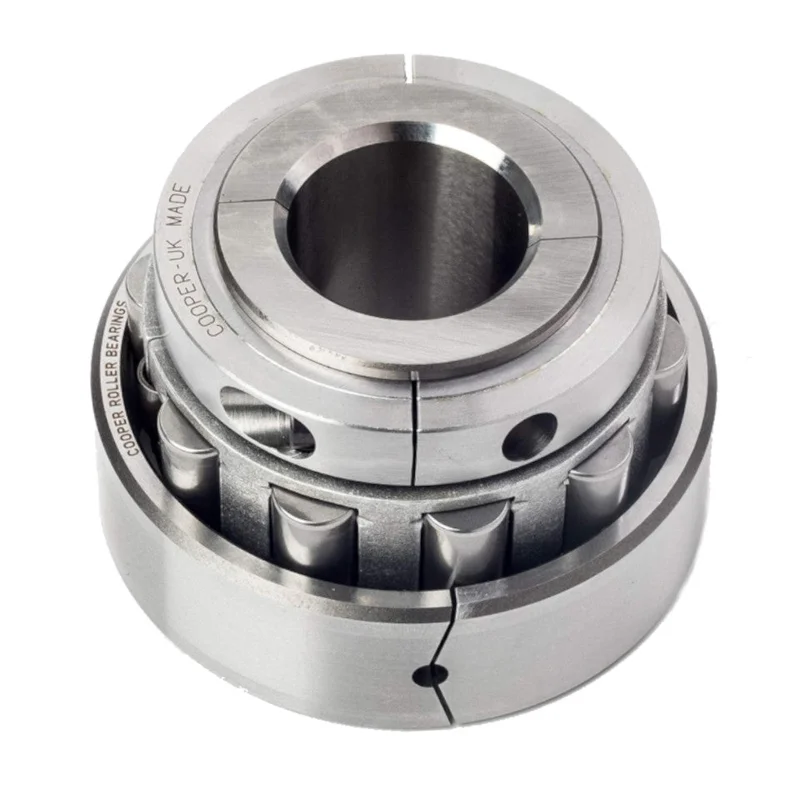

Cooper bearings are commonly supplied in two forms: the Fixed Type (‘GR’) and Expansion Type (‘EX’) as described below. Where conditions are unsuitable for these standard types other configurations are possible.

FIXED TYPE BEARINGS (GR)
The outer race of the fixed (GR) bearing has shoulders integral with the roller track, while the inner race assembly has shoulders formed by hardened lips on the clamping rings or similar integral shoulders. This type of bearing provides axial location to the rotating portions of machinery and can sustain both radial and axial loading. The inner race halves are accurately aligned by means of fitted clamping rings.

EXPANSION TYPE BEARINGS (EX)
The expansion (EX) bearing has a plain outer race roller track. This bearing takes radial load only. The inner race is clamped to the shaft, and moves
axially with it when expansion or contraction occurs. The Cooper expansion bearing offers virtually no resistance to axial movement as the rollers spiral
through the outer race.

Shaft Diameter d: 100mm

Reference: 01E B 100M

Bearing Ratings
Cr (kN): 320
Cor (kN): 421
Ca (kN): 19.6
Max Speed (rpm): 2340

Principal Dimensions
D (mm): 174.62
C (mm): 81.0
B (mm): 45.3
Bl (mm): 45.3
Q (mm): 162

Axial Movement
Usual (mm): 7
Max (mm): 10.5

Mass (kg): 6.0
