Description

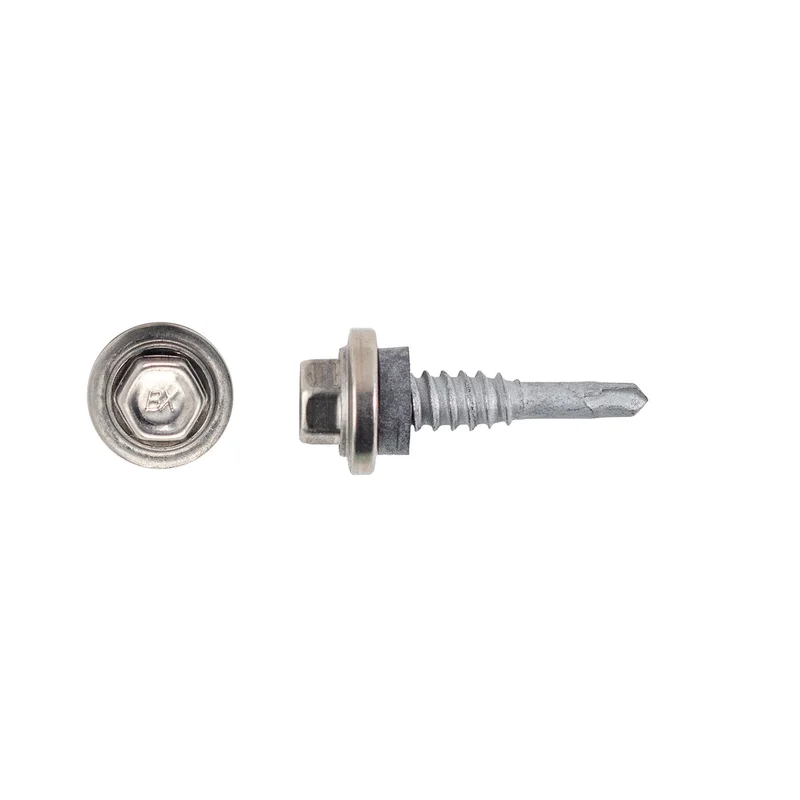

Teks Self-Drilling Screws with Scots 300 Stainless Steel Encapsulated Head

Features and Benefits:

• For improved appearance and extra life, an integral design controls the EPDM rubber washer.
• Combines 300 series stainless steel exterior with the strength of carbon steel.
• 300 series stainless most preferred for galvalume long life panels.
• Maximum sealing and corrosion protection.
• Point has precise cutting edges to improve drill performance with less effort.
• Non-walking point provides fast material engagement.
• Point to thread design maximizes pullout performance and minimizes backout.
• Drills and taps in the broadest range of applications.

INSTALLATION GUIDELINES

1. A standard screw gun with a depth sensitive nosepiece should be used to install Teks. For optimal fastener performance, the screw gun should be a minimum of 6 amps and have an RPM range of 0-2500. A maximum 1800 RPM is recommended for Teks fasteners.
2. New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
3. Adjust the screw gun nosepiece to properly seat the fastener.
4. Overdriving may result in torsional failure of the fastener or stripout of the substrate.
5. The fastener must penetrate beyond the metal structure a minimum of 3 pitches of thread.

General

Product Type:Self-Drilling Screw

UOM:BX

Unit Size:2500

Pieces Per Unit:2500/BX

Weight:38.460000

Product Brand:ITW Buildex

Product Sub Brand:TEKS®

MPN:1175153

COO:Taiwan (Province of China)

Product AKA & Related Tags:TEK Screws, TEKS Screws, TEK SDS, TEK Self-Tapping
