Description

Key Features this SX800 Heavy Duty Steel Shelving

• Strong galvanised steel panels, tested up to 800kg UDL per shelf (1525w)
• 3/4/5 decks of steel panels as standard with each unit
• Steel support beams on each level for extra reinforcement
• Single piece uprights with durable powder coated finish
• Total load capacity of up to 4,000kg UDL per unit
• Suitable for intensive use within a commercial/industrial environment
• Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
• ISO 9001 quality certification and tested to strict FEM standards
• Purchase additional shelves to suit storage requirements
• Quick & easy construction, assembly mallet provided with each order
• Full range of accessories such as joining tie plates available
• Adjustable shelf height every 3.8cm (1.5 Inches)
• Accessible from both sides, no back cross bracing needed
• Free Rubber Assembly Mallet

Ideal Uses:

• Regular picking
• Bulk storage
• 24/7 frequent use
• Archive & document storage
• Very heavy cartons
• Domestic items

Product Overview

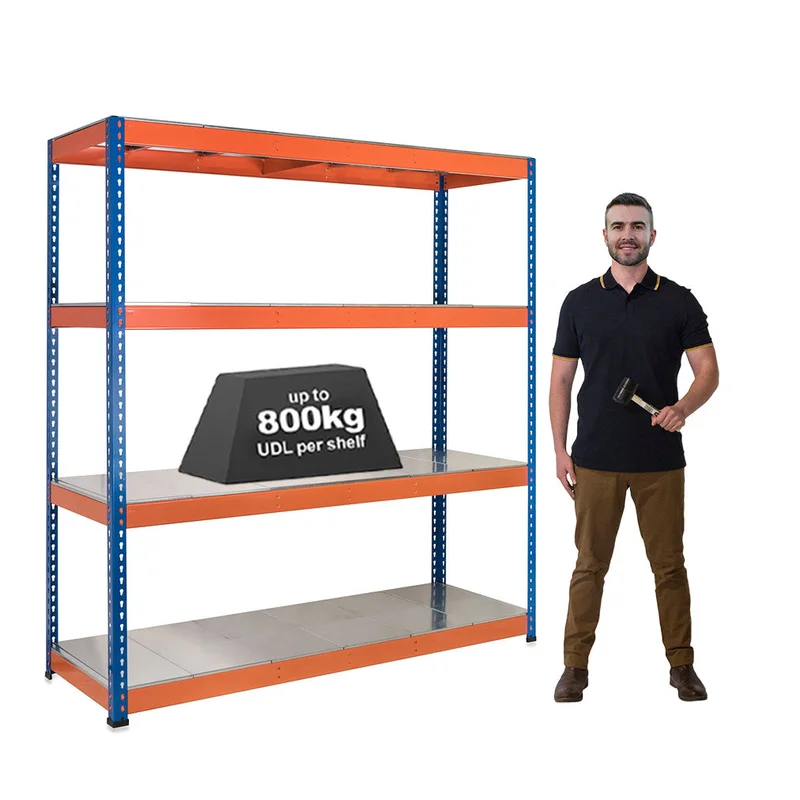

The Storalex SX800 is the ‘heavy weight’ of the steel shelving range, capable of holding up to 800kg UDL per shelf and a whopping 4,000kg per unit. Designed for safely storing incredibly heavy and bulky loads within demanding commercial environments.

UK Businesses have relied on the tried and tested ‘stud and keyhole’ design for over 25 years. For 24/7 environments such as warehouses and factories where safety and practicality is paramount, the SX800 is an incredibly robust and sturdy shelving system designed to cope with around the clock intensive use.

Rigorously tested to strict FEM (European Federation of Material Handling) standards these units also comply with ISO 9001 quality requirements.

Product spec

SX800 Steel Shelving Guide

Fitting Guide For SX800 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data	1220w	1525w	1830w	2440w
Upright	one piece	one piece	one piece	one piece
Shelf Adjustment (mm)	38.1	38.1	38.1	38.1
Clear Entry (mm)	1135	1440	1745	2355
First unit External (mm)	1232	1537	1842	2452
Additional unit External (mm)	1239	1544	1849	2459
Total unit Capacity 1980h	3200kg	3200kg	3200kg	3200kg
Total unit Capacity 2440h	2800kg	2800kg	2800kg	2800kg
Total unit Capacity 3050h	2500kg	2500kg	2500kg	2500kg
Upright Steel Thickness (mm)	2	2	2	2
Beam Steel Thickness (mm)	2	2	2	2
Chipboard Thickness (mm)	15	15	15	15
Melamine Thickness (mm)	15	15	15	15
Steel Thickness (mm)	0.8	0.8	0.8	0.8
Height of Shelf (mm)	94	94	94	94

Instructions

PRODUCT CATEGORY	PRODUCT DESCRIPTION	DOWNLOAD LINK

Industrial Shelving & Racking	Assembly Instructions – Storalex SX400 & SX800 – Industrial Shelving	DOWNLOAD

Delivery / Returns

[ 2]

Key Features:

• Up to 800kg per shelf, 4,000 per unit (UDL)
• Flush fitting sheet steel decks
• Adjustable shelf height every 3.8cm
