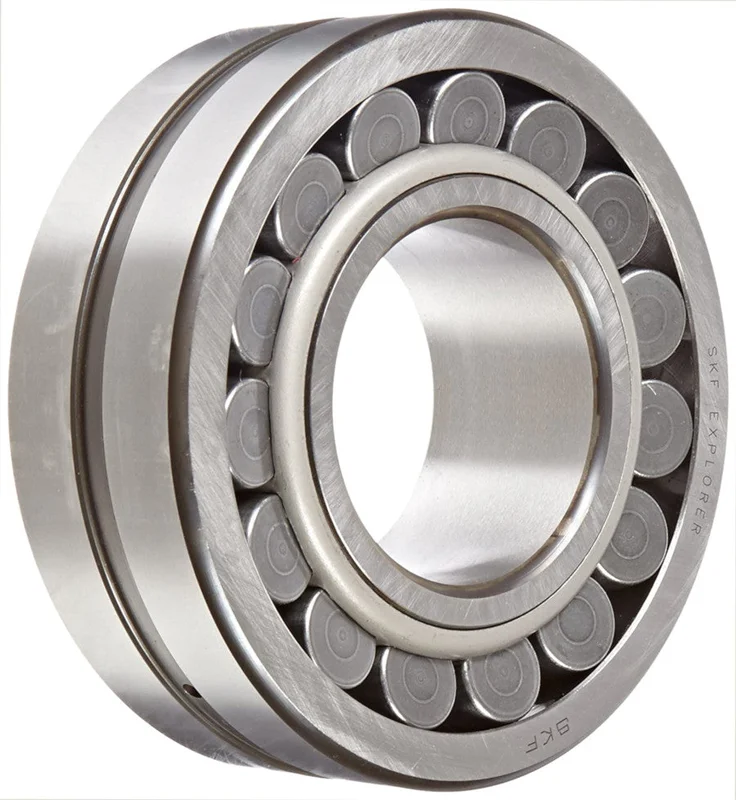

SKF Explorer spherical roller bearings – VA405 & VA406

Designed for vibrating screens

Machinery with inherent eccentric motions, such as vibrating screens, demand highly robust bearing designs and materials to reach their full lifecycle potential. SKF Explorer spherical roller bearings VA405 or VA406 help maximize bearing service life for vibrating screen applications in several ways.

Withstands vibration levels greater than 5g

Standard SKF Explorer spherical roller bearings have proven effective at vibration levels < 5g. VA405 or VA406 SKF Explorer spherical roller bearings can handle vibration levels greater than 5 g. They can withstand considerably higher accelerations than corresponding standard bearings as well. Like all SKF Explorer bearings, VA405 or VA406 SKF Explorer spherical roller bearings also feature improved internal geometry and manufacturing procedures, which help extend bearing service life considerably. These bearings have a rugged three-part cage system, larger radial internal clearance, and higher dimensional precision. Additionally, the VA406 has a PTFE coated bore, which virtually eliminates fretting corrosion on the shaft. VA405 and 406 bearings run at lower operating temperatures than conventional bearings, which help improve lubricant service life. Extended lubricant service life
Reduced unplanned downtime
Reduced maintenance
Higher equipment reliability
Increased productivity

Principal dimensions mm
Inside d: 70
Outside D: 150
Width B: 51

Basic load ratings kN
Dynamic: 400
static: 430
Fatigue load limit: 45 kN

Speed ratings r/min
Reference speed: 3 400
Limiting speed: 4 500

Mass: 4,55 kg

Dimensions mm
d2: 90,3
D1: 128
b: 8,3
K: 4,5
r1,2 min: 2,1
