Description

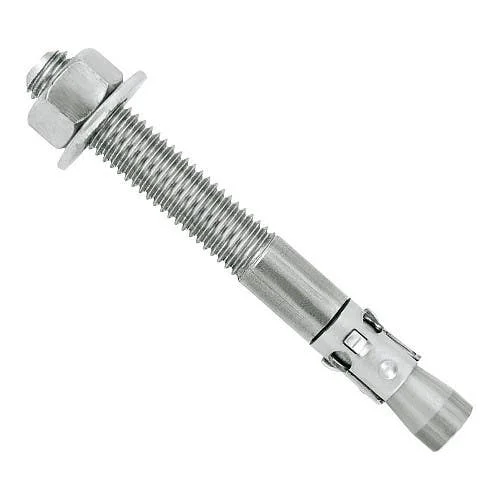

Domestic Concrete Wedge Anchor, Zinc Plated Carbon Steel

---

Features Specs

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading
• Power-stud+ SD1 optionally available as made in USA at time of publication; product certifications available by request

---

General Applications

• Structural Connections, i.e., beam and column anchorage
• Safety-Related Attachments
• Barriers and Guards
• Fencing and Railing
• Mezzanines and racking
• Tension Zone Applications, i.e., cable trays and strut, pipe supports, fire sprinklers
• Trapeze / Overhead Utilities
• Ledgers, Angles and Brackets
• Equipment Anchorage
• Wind and Seismic Loading (sDC A – f)

THREAD VERSION

UNC threaded stud

ANCHOR MATERIALS

Zinc plated carbon steel body with expansion clip, nut and washer

ANCHOR SIZE RANGE (TYP.)

1/4″ diameter to 1-1/4″ diameter

SUITABLE BASE MATERIALS

• Normal-weight concrete
• Lightweight concrete
• Concrete-filled steel deck
• Grouted concrete masonry (CMU)

General

UOM:BX

Unit Size:50

Pieces Per Unit:50/BX

Weight:5.200000

Product Type:Wedge Expansion Anchor

MPN:7412SD1USA-PWR

Product Brand:DeWalt

COO:United States of America (the)

Made in USA:yes

Product Keywords:SD-1
