Description

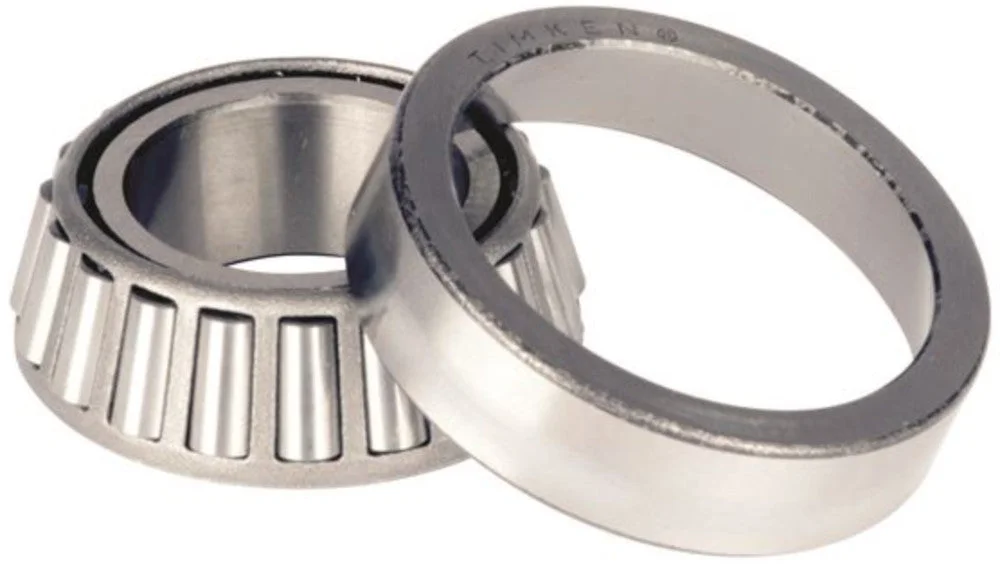

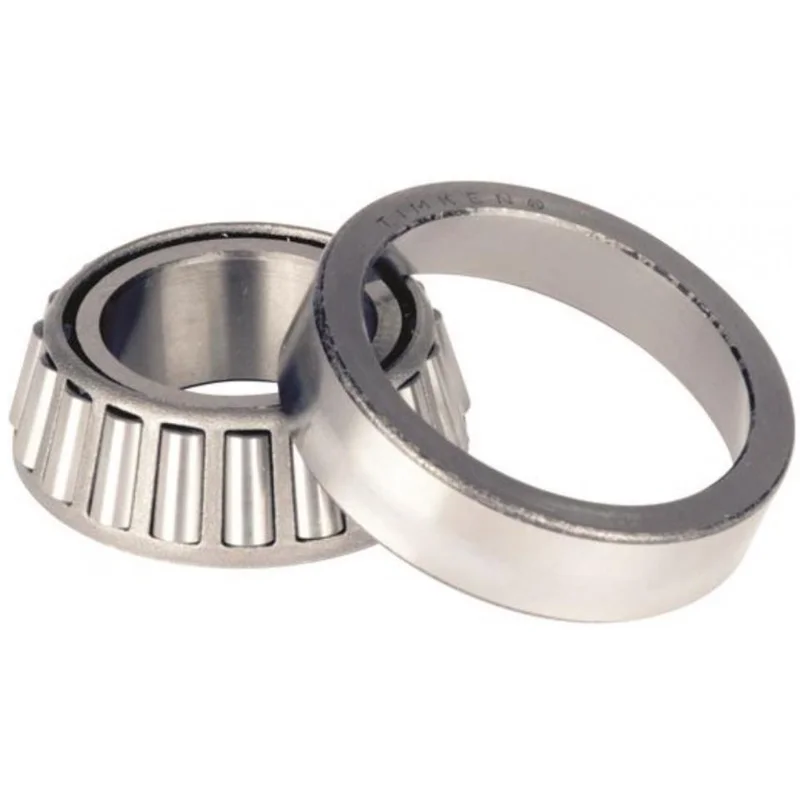

Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:
Enhanced performance in demanding applications.

Specifications
Series: 32006X
Cone part number: X32006X
Cup part number: Y32006X
Bearing weight: 0.200 Kg

Dimensions
d – Bore: 30 mm
D – Cup outer diameter: 55.000 mm
B – Cone width: 17.000 mm
C – Cup width: 13.000 mm
T – Bearing width: 17.000 mm

Basic load ratings
C0 – Static Radial Rating: 45300 N / 10200 lbf
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 8870 N / 1990 lbf
