Description

Key Features of SX400 Melamine Industrial Shelving

• 15mm thick melamine chipboard shelves, tested up to 500kg UDL per shelf
• Total load capacity of up to 2,500kg UDL per unit
• 3/4/5 x melamine chipboard shelves as standard with each unit
• Purchase additional shelves to suit storage requirements
• Single piece uprights with durable powder coated finish
• Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
• Suitable for daily use within a commercial/industrial environment
• Low profile shelf beam design maximises storage space
• Quick & easy construction, assembly mallet provided with each order
• Full range of accessories such as joining tie plates available
• Adjustable shelf height every 3.8cm (1.5 Inches)
• Accessible from both sides, no back cross bracing needed
• Free Rubber Assembly Mallet!

Ideal Uses:

• Regular Picking
• Archive & document storage
• Small parts storage
• Light boxes
• Domestic items

Product Overview

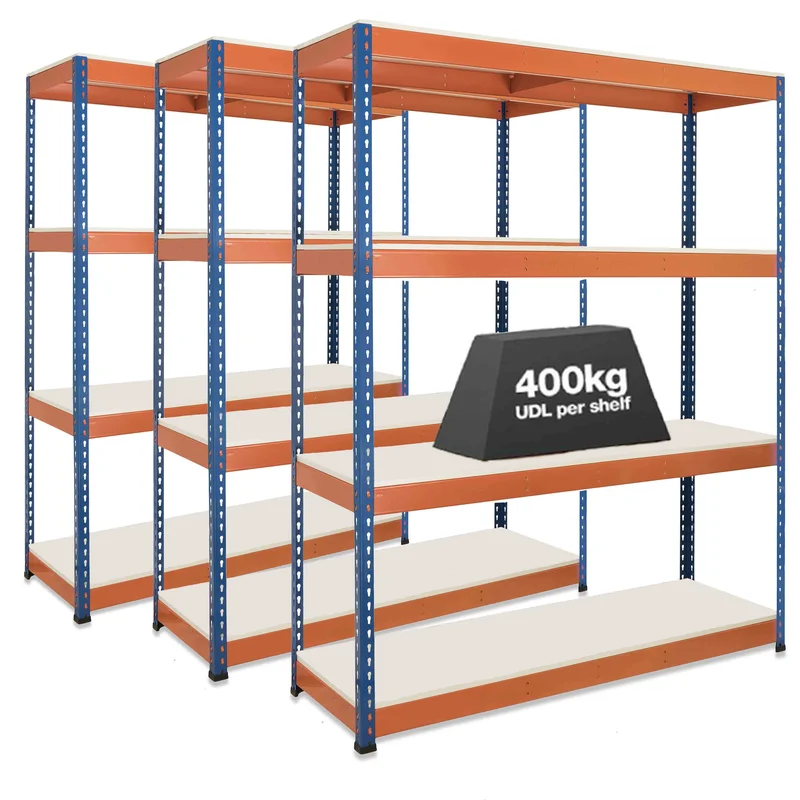

The Storalex SX400 range of heavy-duty industrial shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.

This heavy duty industrial shelving range is perfect for industry & businesses storing items in stockrooms, storerooms, factories and warehouses. Each shelf can support 500kg UDL*, however If you need to increase the shelf weight capacity the SX800 range is a heavier duty version of this product.

Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested to FEM (European Federation of Material Handling) standards these commercial grade units also comply with all relevant ISO manufacturing quality requirements.

Product spec

SX400 Industrial Shelving Guide

Fitting Guide For SX400 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data	1220w	1525w	1830w	2135w	2440w
Upright	one piece	one piece	one piece	one piece	one piece
Shelf Adjustment (mm)	38.1	38.1	38.1	38.1	38.1
Clear Entry (mm)	1135	1440	1745	2050	2355
First unit External (mm)	1232	1537	1842	2147	2452
Additional unit External (mm)	1239	1544	1849	2154	2459
Total unit Capacity 1677h	1600kg	1600kg	1600kg	1600kg	1600kg
Total unit Capacity 1980h	1600kg	1600kg	1600kg	1600kg	1600kg
Total unit Capacity 3050h	1320kg	1320kg	1320kg	1320kg	1320kg
Upright Steel Thickness (mm)	1.5	1.5	1.5	1.5	1.5
Beam Steel Thickness (mm)	1.5	1.5	1.5	1.5	1.5
Chipboard Thickness (mm)	15	15	15	15	15
Melamine Thickness (mm)	15	15	15	15	15
Steel Thickness (mm)	0.8	0.8	0.8	0.8	0.8
Height of Shelf (mm)	94	94	94	94	94

Instructions

PRODUCT CATEGORY	PRODUCT DESCRIPTION	DOWNLOAD LINK

Industrial Shelving & Racking	Assembly Instructions – Storalex SX400 & SX800 – Industrial Shelving	DOWNLOAD

Delivery / Returns

[ 2]

Key Features

• Up to 500kg per shelf, 2,500 per unit (UDL)
• Tough, wipe clean 15mm melamine decks
• Adjustable shelf height every 3.8cm
