Description

Key Features of SX200 Steel Shelving

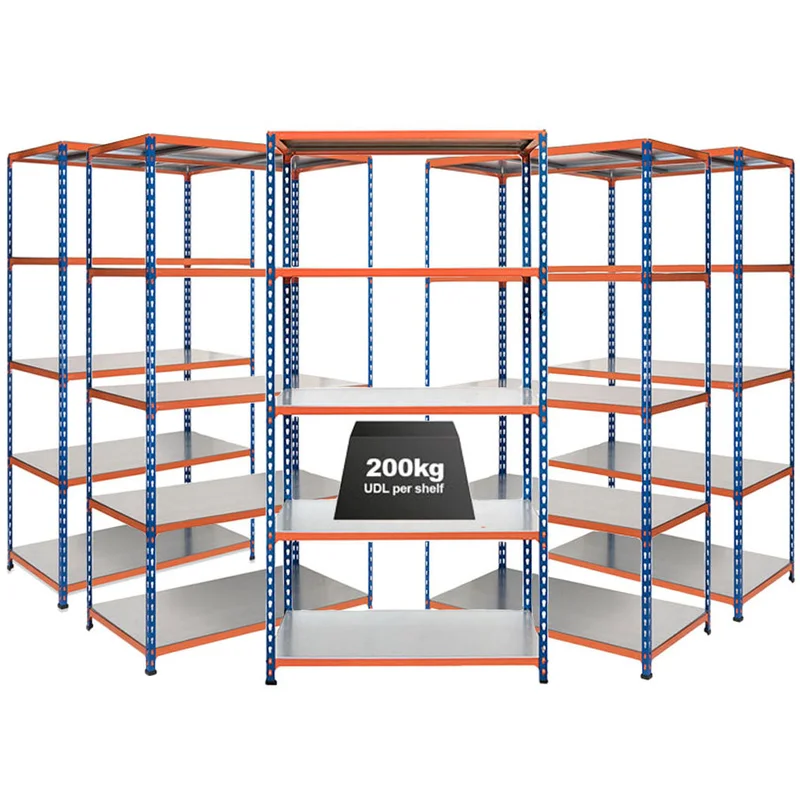

• Strong galvanised steel shelves, tested to 200kg UDL per shelf (915mm wide)
• Total load capacity of up to 1,200kg UDL per unit
• 4/5/6 x steel shelves as standard with each unit
• Purchase additional shelves to suit storage requirements
• Steel support beams for each level for extra reinforcement
• Single piece uprights with durable powder coated finish
• Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
• Suitable for daily use within a commercial/industrial environment
• Low profile shelf beam design maximises storage space
• Quick & easy construction, assembly mallet provided with each order
• Full range of accessories such as joining tie plates available
• Adjustable shelf height every 3.8cm (1.5 Inches)
• Accessible from both sides, no back cross bracing needed
• Free Rubber Assembly Mallet!

Ideal Uses:

• Regular Picking
• Archive & document storage
• Small parts storage
• Light boxes
• Domestic items

Product Overview

The Storalex SX200 range of medium-duty steel shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.

This light industrial range is perfect for businesses storing items in stockrooms, storerooms or heavy duty domestic applications such as garages or workshops. Each shelf can support 200kg UDL*, however If you need to increase the shelf weight capacity the SX340 range is a heavier duty version of this product.

Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested these commercial grade units also comply with all relevant ISO manufacturing quality requirements.

Product spec

SX200 Steel Shelving Guide

Fitting Guide For SX200 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data	610w	915w	1220w	1525w
Upright	One Piece	One Piece	One Piece	One Piece
Shelf Adjustment (mm)	38.1	38.1	38.1	38.1
Clear Entry (mm)	546	851	1156	1461
First unit External (mm)	620	925	1230	1535
Additional unit External (mm)	627	932	1237	1542
Total unit Capacity 1830h mm	1200kg	1200kg	1200kg	1200kg
Total unit Capacity 2440h mm	1000kg	1000kg	1000kg	1000kg
Upright Steel Thickness (mm)	1.5	1.5	1.5	1.5
Beam Steel Thickness (mm)	1.5	1.5	1.5	1.5
Chipboard Thickness (mm)	15	15	15	15
Melamine Thickness (mm)	15	15	15	15
Steel Thickness (mm)	0.8	0.8	0.8	0.8
Height of Shelf (mm)	30	30	30	30

Instructions

Delivery / Returns

[ 2]

Key Features:

• Up to 200kg per shelf, 1,200 per unit (UDL)
• Flush fitting sheet steel decks
• Adjustable shelf height every 3.8cm
