Description

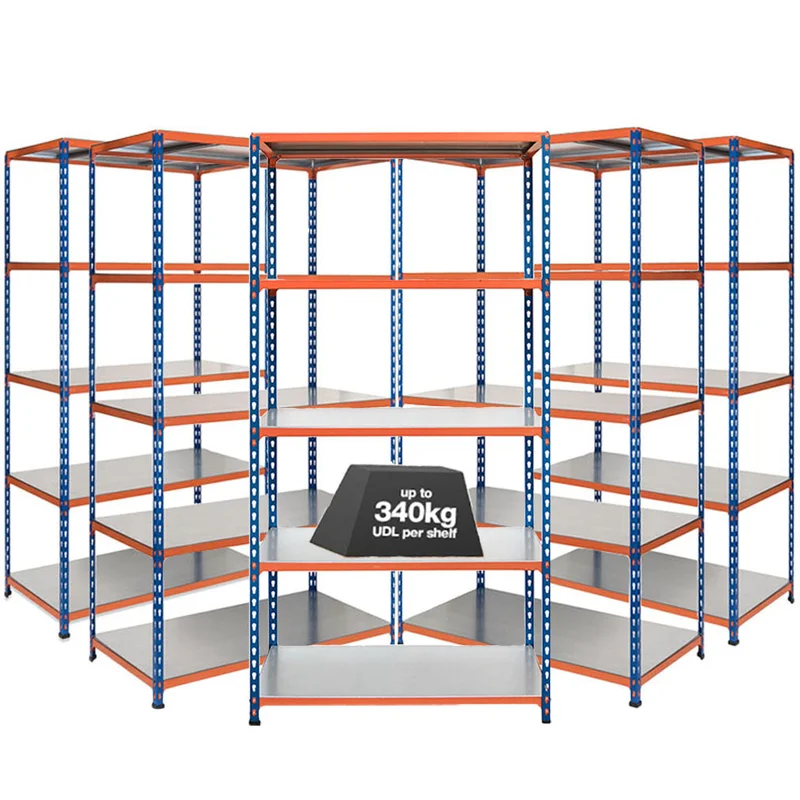

Key Features of SX340 Steel Shelving

• 4, 5 and 6 level units available
• 2mm thick powder coated European steel construction
• Strong galvanised steel shelves, tested to 340kg UDL per shelf
• Total load capacity of up to 2,040kg UDL per unit
• Single piece uprights increase unit stability
• Purchase additional shelves to suit storage requirements
• Steel support beams on each level for extra reinforcement
• Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
• 4/5/6 x steel decks as standard with each unit
• Built to ISO manufacturing standards
• Suitable for daily use within a commercial/industrial environment
• Low profile shelf beam design maximises storage space
• Quick & easy construction, assembly mallet provided with each order
• Full range of accessories such as joining tie plates available
• Adjustable shelf height every 3.8cm (1.5 Inches)
• Accessible from both sides, no cross bracing needed
• Free Rubber Assembly Mallet

Ideal Uses:

• Regular Picking
• Archive & document storage
• Small parts storage
• Heavy boxes
• Domestic items

Product Overview

The Storalex SX340 range of steel shelving is a general purpose ‘work horse’ great for frequent use within industrial, commercial and retail environments. This range of shelving has been used in warehouses and stockrooms for over 25 years and uses a tried and tested boltless design.

Our most versatile shelving range, the SX340 modular system has been rigorously tested to FEM (European Federation of Material Handling) standards – suitable for daily use in an industrial environment.

Product spec

SX340 Steel Shelving Guide

Fitting Guide For SX340 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data	610w	915w	1220w	1525w
Upright	One Piece	One Piece	One Piece	One Piece
Shelf Adjustment (mm)	38.1	38.1	38.1	38.1
Clear Entry (mm)	546	851	1156	1461
First unit External (mm)	620	925	1230	1535
Additional unit External (mm)	627	932	1237	1542
Total unit Capacity 1830h mm	2869kg	2869kg	2869g	2869kg
Total unit Capacity 2440h mm	2475kg	2475kg	2475kg	2475kg
Total unit Capacity 3050h mm	1745kg	1745kg	1745kg	1745kg
Upright Steel Thickness (mm)	1.8	1.8	1.8	1.8
Beam Steel Thickness (mm)	2	2	2	2
Chipboard Thickness (mm)	15	15	15	15
Melamine Thickness (mm)	15	15	15	15
Steel Thickness (mm)	0.8	0.8	0.8	0.8
Height of Shelf (mm)	30	30	30	30

Instructions

PRODUCT CATEGORY	PRODUCT DESCRIPTION	DOWNLOAD LINK

Industrial Shelving & Racking	Assembly Instructions – Storalex SX200 & SX340 – Industrial Shelving	DOWNLOAD

Delivery / Returns

[ 2]

Key Features:

• Up to 340kg per shelf, 1,700 per unit (UDL)
• Flush fitting sheet steel decks
• Adjustable shelf height every 3.8cm
