Description

Key Features of SX340 Melamine Industrial Shelving

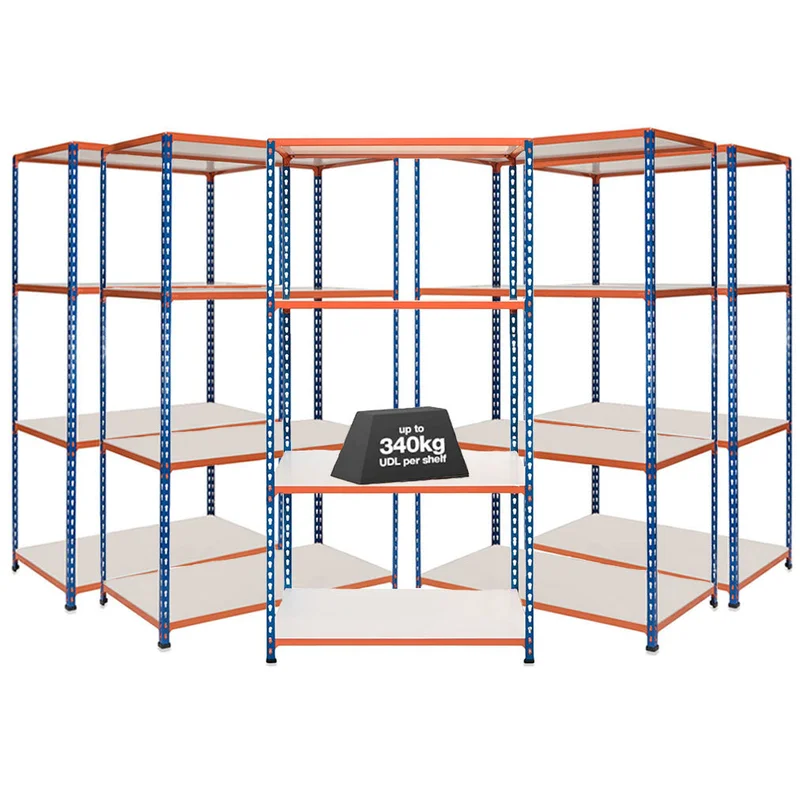

• 15mm thick melamine chipboard shelves, tested to 340kg UDL per shelf (915mm wide)
• Total load capacity of up to 2,040kg UDL per unit
• 4/5/6 x melamine chipboard shelves as standard with each unit
• Purchase additional shelves to suit storage requirements
• Single piece uprights with durable powder coated finish
• Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
• Suitable for daily use within a commercial/industrial environment
• Low profile shelf beam design maximises storage space
• Quick & easy construction, assembly mallet provided with each order
• Full range of accessories such as joining tie plates available
• Adjustable shelf height every 3.8cm (1.5 Inches)
• Accessible from both sides, no back cross bracing needed
• Free Rubber Assembly Mallet!

Ideal Uses:

• Regular Picking
• Archive & document storage
• Small parts storage
• Domestic items

Product Overview

The Storalex SX340 range of medium-duty industrial shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.

This medium duty industrial shelving range is perfect for businesses storing items in stockrooms, storerooms or heavy duty domestic applications such as garages or workshops. Each shelf can support 340kg UDL*, however If you need to increase the shelf weight capacity the SX400 range is a heavier duty version of this product.

Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested these commercial grade units also comply with all relevant ISO manufacturing quality requirements.

Product spec

SX340 Industrial Shelving Guide

Fitting Guide For SX340 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data	610w	915w	1220w	1525w
Upright	One Piece	One Piece	One Piece	One Piece
Shelf Adjustment (mm)	38.1	38.1	38.1	38.1
Clear Entry (mm)	546	851	1156	1461
First unit External (mm)	620	925	1230	1535
Additional unit External (mm)	627	932	1237	1542
Total unit Capacity 1830h mm	2869kg	2869kg	2869g	2869kg
Total unit Capacity 2440h mm	2475kg	2475kg	2475kg	2475kg
Total unit Capacity 3050h mm	1745kg	1745kg	1745kg	1745kg
Upright Steel Thickness (mm)	1.8	1.8	1.8	1.8
Beam Steel Thickness (mm)	2	2	2	2
Chipboard Thickness (mm)	15	15	15	15
Melamine Thickness (mm)	15	15	15	15
Steel Thickness (mm)	0.8	0.8	0.8	0.8
Height of Shelf (mm)	30	30	30	30

Instructions

PRODUCT CATEGORY	PRODUCT DESCRIPTION	DOWNLOAD LINK

Industrial Shelving & Racking	Assembly Instructions – Storalex SX200 & SX340 – Industrial Shelving	DOWNLOAD

Delivery / Returns

[ 2]

Key Features

• Up to 340kg per shelf, 1,700 per unit (UDL)
• Flush fitting 15mm melamine decks
• Adjustable shelf height every 3.8cm
