Description

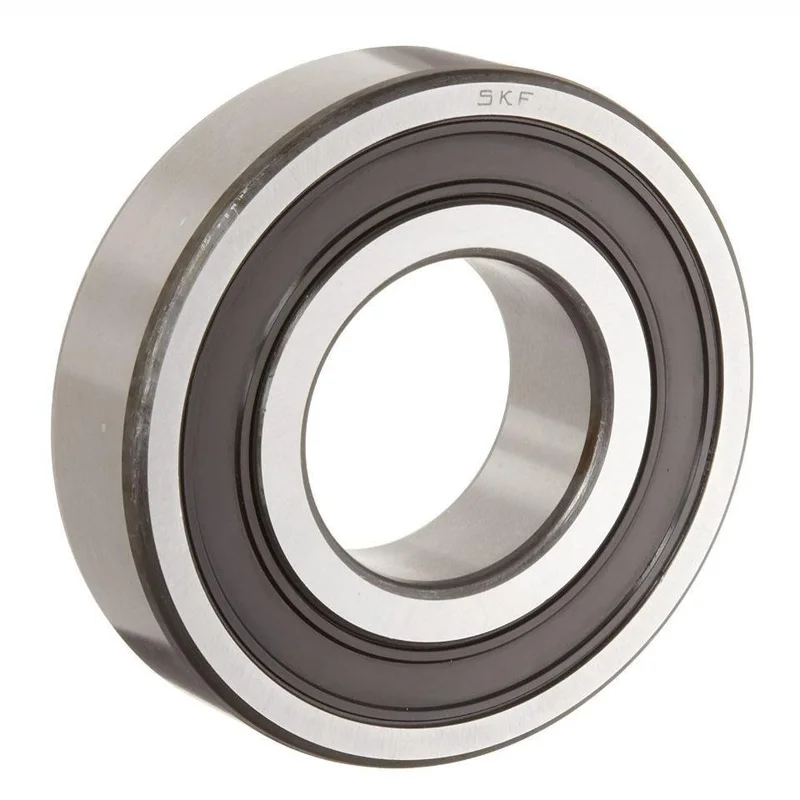

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

SKF GJN bearings are filled with a special lubricant to enable them to run at higher temperatures, SKF GJN grease with polyurea thickener of consistency 2 to the NLGI Scale for a temperature range -30 to +150 degrees Celsius

Principal Dimensions
Inside diameter d: 65mm
Outside diameter D: 120mm
Width B: 23mm

Basic Load Ratings
Dynamic: 58,5kn
Static: 40,5kn

Speed Ratings
Reference speed: – r/min
Limiting speed: 3 600 r/min

Dimensions mm
d1: 83,3
d2: –
D2: 106
r1,2 min: 1.5
