Description

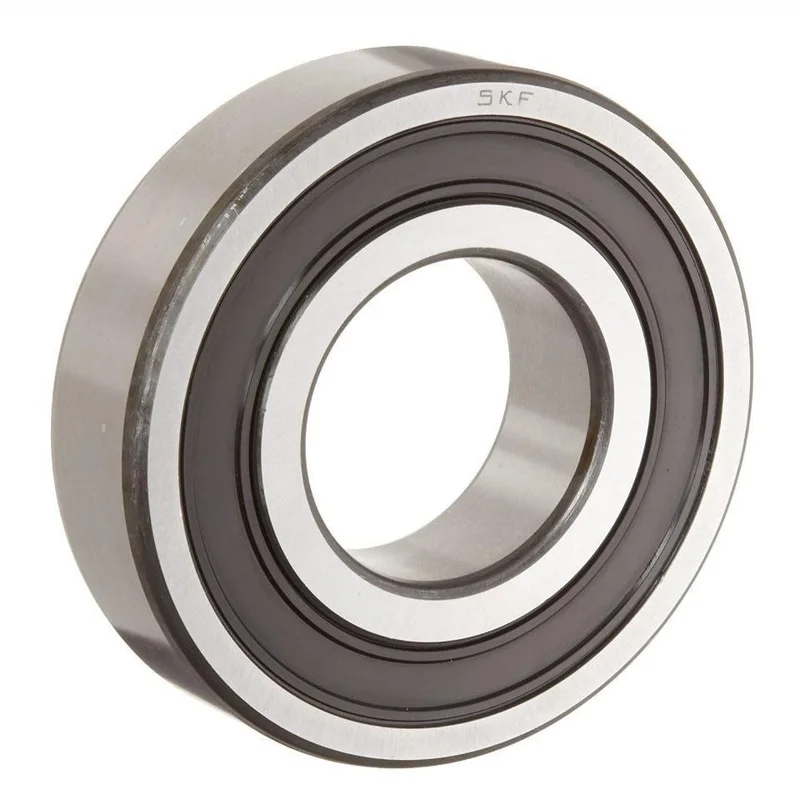

SKF 6300-2RSH/C3 is a high quality deep groove ball bearing designed for versatile performance and extended service life. It features double rubber seals (2RSH) to provide excellent protection against dust, moisture, and other contaminants, making it ideal for demanding environments. The C3 internal clearance allows for a greater tolerance to thermal expansion and higher running speeds, reducing the risk of premature failure.

Key Features:

Brand: SKF

Seals: 2RSH – Rubber seals on both sides

Clearance: C3 (greater than normal for temperature variations)

Material: High grade steel for superior durability and resistance to wea

Applications: Electric motors, household appliances, power tools, transmissions and more

This bearing combines SKF renowned engineering quality with robust sealing and optimal clearance, ensuring reliable operation across a wide range of industrial and automotive applications.

SKF Single Row Deep Groove Ball Bearings – Trusted Performance, Proven Reliability. Engineered to perform under the most demanding conditions, SKF Single row deep groove ball bearings offer superior load carrying capacity, low friction, and extended service life. Their versatility makes them an excellent choice for a wide range of industries, from automotive to manufacturing. Whether you need high speed performance or robust sealing against contaminants, SKF delivers unmatched quality and value.

Principal Dimensions
Inside diameter d: 10mm
Outside diameter D: 35mm
Width B: 11mm

Basic Load Ratings
Dynamic: 4.75kn
Static: 1.96kn

Speed Ratings
Reference speed: – r/min
Limiting speed: 19000 r/min

Dimensions mm
d1: –
d2: 13
D2: 22,6
r1,2 min: 0,3
