Description

100kg Hand Winch Kits –

A 100kg maximum capacity hand operated winch (type AG100) with wire rope and either 1 or 2 pulleys, suitable for raising blinds, gym & fitness equipment, shutters, clothes lines, washing lines and chandeliers.

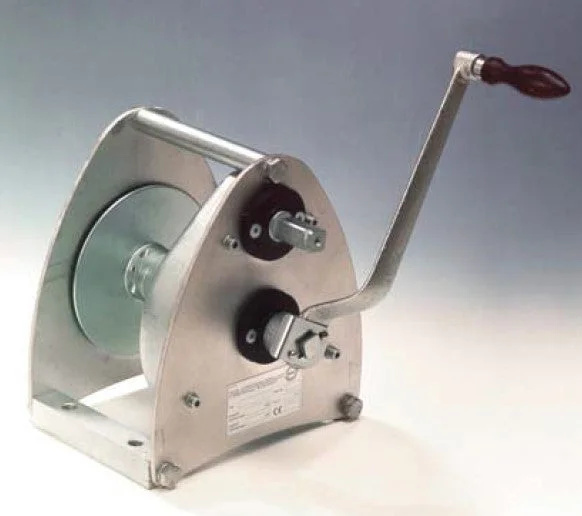

• AG100 Hand Winch – Designed for light to medium duty applications and features:
• Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish.
• Spur gear manual cranking operation.
• Self locking brake for safety (load holds in place when user stops cranking handle).
• Quiet running with low crank effort, removable crank and low weight.

Specification

Kit A (152-1-6A) Winch comes with:

• 1 x AG100 Winch with removable handleSWL 100kg
• 1 x 3mm dia,10m Galv 7×19, wire rope – loop crimped with aluminium ferrule

NOTE – supplied loose, so assembly of wire rope to winch required on site

• 1 x WEBI PULLEY TYPE ETT-116P – POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155.1.3 / 80mm Dia, 100kg – useful for diverting wire rope

Kit B (152-1-7A) Winch comes with:

• 1 x AG100 Winch with removable handleSWL 100kg
• 1 x 3mm dia,10m Galv 7×19, wire rope – loop crimped with aluminium ferrule

NOTE – supplied loose, so assembly of wire rope to winch required on site

• 2 x WEBI PULLEY TYPE ETT-116P – POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155.1.3 / 80mm Dia, 100kg – useful for diverting wire rope
