Description

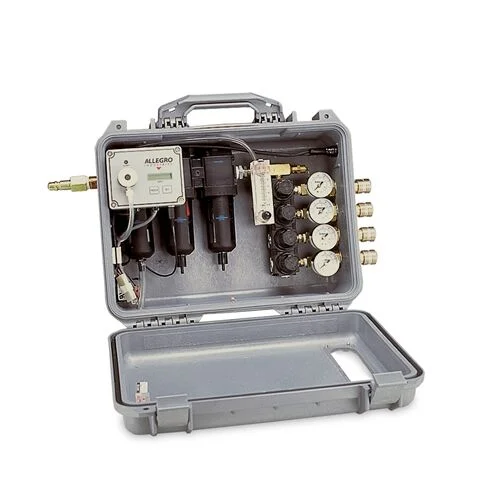

Allegro 9874-MR Multi-Regulator Filtration Panel, Four Port

---

The unique design of this panel allows each regulator to be individually adjusted at different pressure settings, allowing as well, separate outlets for air tools. The viewing window on the case allows monitoring of pressure gauges. A 16 gauge steel stand for support is included as well as all brass plumbing with quick-disconnect Hansen couplers.

---

FILTRATION PANEL SPECS

FILTRATION PANELSPART NO.MAX. FLOWMAX. INLETDIMENSIONSWEIGHT

(LBS.)

• Carry-Air 1 Worker987315 CFM150 psig16″x13″x7″11
• Carry-Air 2 Worker9872 Series30 CFM150 psig18″x12″x6″14
• Multi Regulator 4 Worker9874 MR60 CFM125 psig21″x14.5″x6.75″21
• Carry-Air 5 Worker9875 Series60 CFM150 psig21″x14.5″x6.75″19
• Multi Regulator 6 Worker9876 MR100 CFM150 psig23″x16.5″x7.5″27
• Carry-Air 8 Worker9878 Series100 CFM150 psig23″x16.5″x7.5″25
• 100 CFM Panel9878-100100 CFM150 psig23″x16.5″x7.5″21

---

• Wall-Air 1 Worker9873-4015 CFM150 psig21.25″x8.25″x7.75″11
• Wall-Air 2 Worker9872-40 Series30 CFM150 psig21.25″x8.25″x7.75″11
• Wall-Air 5 Worker9875-40 Series60 CFM150 psig22″x8.5″x7.5″15
• Wall-Air 8 Worker9878-40 Series100 CFM150 psig25″x14″x7″21

---

Part Number

• 9874-MR
• 9876-MR

---

Click HERE for specifications.

---
