Description

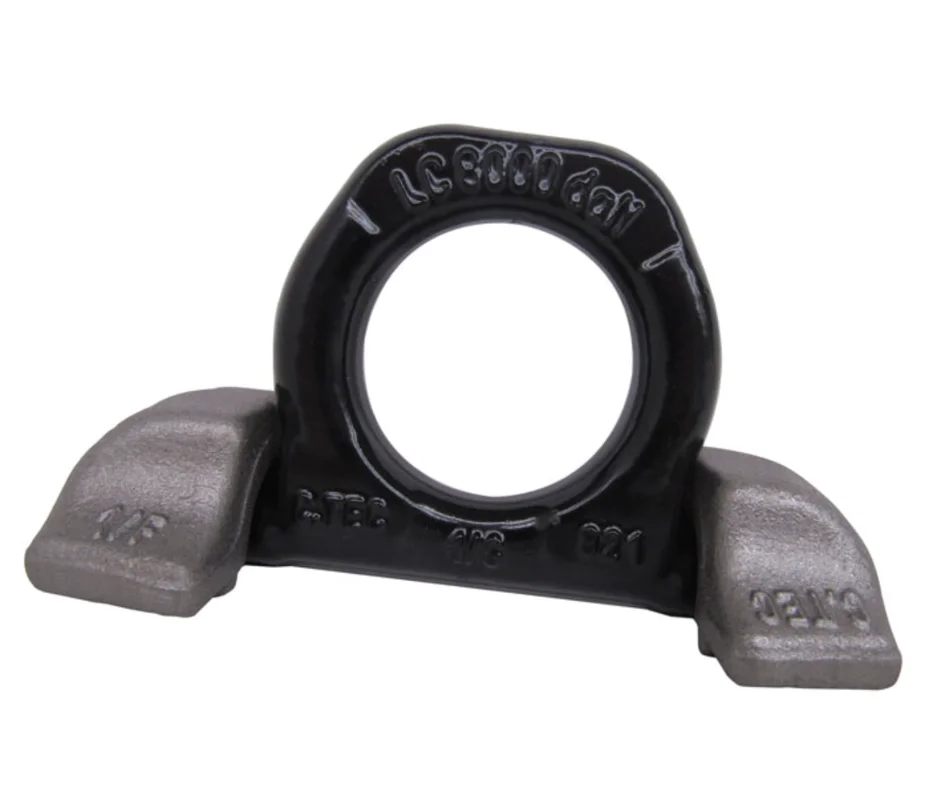

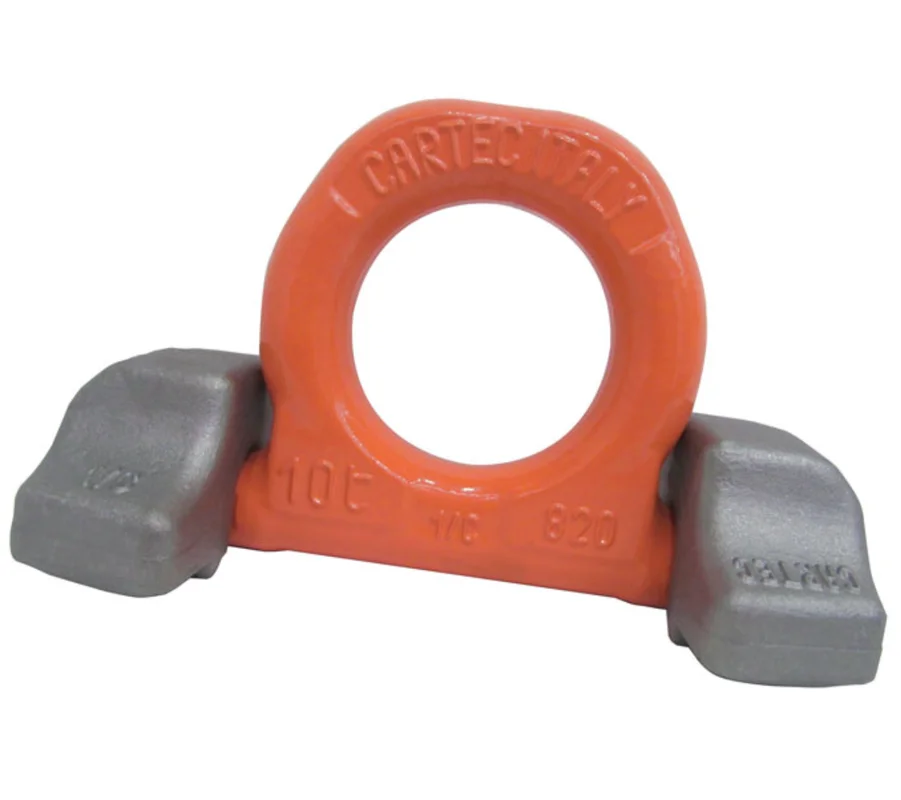

Cartec Grade 10 Double Base Weld-on Lifting Ring – 820X
- Grade 10 high resistant alloy steel.
- Black painted finish.
- Minimum breaking load is 4 times the W.L.L.
- The entire perimeter of the base must be welded except for the water discharge area.
- Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
- Full CAD support available upon request.
- Certification – Declaration Of Conformity
In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.
Lc = capacity needed per single bracket.
C = load to anchor.
δ = pulling inclination angle.
b = number of sling arms.
Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.
Specification
| SKU | W.L.L. | A | B | C | D | E | F | G | H | Welding Thickness | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | mm | HV + Δa | kgs | |
| 286-618-1 | 4 | 14 | 65 | 48 | 29 | 134 | 14 | 60 | 79 | HV 4+3 | 0.73 |
| 286-618-2 | 6.7 | 20 | 83 | 60 | 39 | 169 | 16 | 88 | 103 | HV 5.5+3 | 1.8 |
| 286-618-3 | 10 | 22 | 96 | 65 | 48 | 196 | 19.5 | 98 | 118 | HV 6+4 | 3 |
| 286-618-4 | 16 | 31 | 126 | 90 | 55 | 264 | 29 | 127 | 155 | HV 8.5+4 | 5.75 |
| 286-618-5 | 30 | 42 | 175 | 130 | 79 | 371 | 45 | 157 | 217 | HV 15+4 | 16 |
