Description

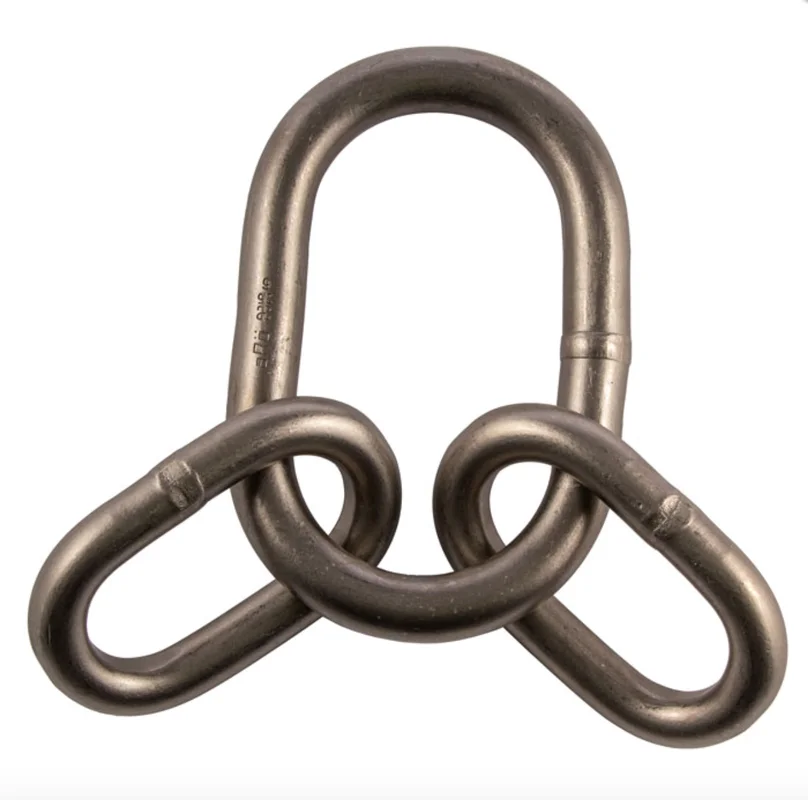

Grade 6 Stainless Steel Quad Master Link Assembly
- Material: Grade 6 stainless steel, AISI 316L
- Finish: Surface blasted for a uniform, smooth finish
- Markings: Clearly marked with material grade, manufacturer’s ID, product ID mark, and traceability code
- Certification: Declaration of Conformity (DoC)
Specification
| SKU | Chain Dia | D1 | L1 | W1 | D2 | L2 | W2 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-312-1 | 6 | 13 | 110 | 60 | 10 | 44 | 20 |
| 286-312-2 | 7 | 16 | 110 | 60 | 13 | 54 | 25 |
| 286-312-3 | 8 | 18 | 135 | 75 | 16 | 70 | 34 |
| 286-312-4 | 10 | 22 | 160 | 90 | 18 | 85 | 40 |
| 286-312-5 | 13 | 26 | 180 | 100 | 22 | 115 | 50 |
| 286-312-6 | 16 | 32 | 200 | 110 | 26 | 140 | 65 |
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| t | kN | kN | kgs | ||
| 286-312-1 | 6 | 1.89 | 34 | 67 | 0.52 |
| 286-312-2 | 7 | 2.6 | 52 | 103 | 0.97 |
| 286-312-3 | 8 | 3.35 | 66 | 132 | 1.6 |
| 286-312-4 | 10 | 5.25 | 104 | 207 | 2.76 |
| 286-312-5 | 13 | 8.9 | 175 | 350 | 4.45 |
| 286-312-6 | 16 | 13.2 | 259 | 528 | 7.55 |
