Description

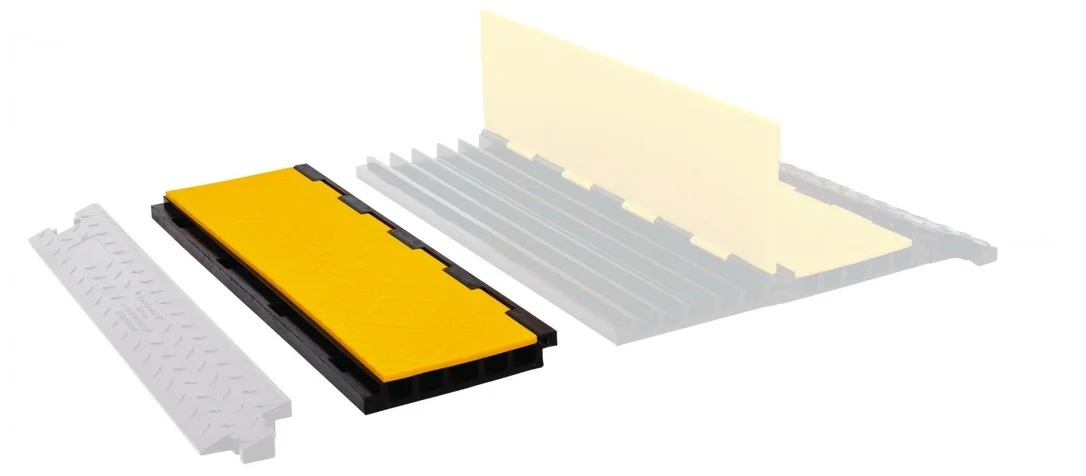

Use the 5-Channel Heavy-Duty Yellow Jacket AMS System Center Section with The Yellow Jacket5-channel AMS(Advanced Modular System). The Yellow Jacket5-channel AMS(Advanced Modular System) is a patented technology that utilizes separate cable protector sections and ramps to create a system that is fully expandable to hold an unlimited number of cables. By detaching the ramps, you can also quickly add cable runs and ADA compatible side ramps to existing systems. The Yellow JacketAMSreadily handles heavy truck and bus traffic while providing easy access for pedestrians, carts, and wheelchairs. Hinged lids make for easy loading of cables and hoses
- System includes 1 AMS® center section and 1 pair of ramps
- Protects cables and hoses up to 1.25″ outside diameter
- Connect unlimited center sections and add ramps
- Hinged lid for easy cable placement
- Patented technology with modular interlocking design
- Can be used with the YJ5 Interconnect to be used with the YJ5 standard ramps. (can only be used with one center section between side ramps)
| Model No. | YJ5-125AMSCTRYB |
|---|---|
| Quantity Included | 1 |
| Color | Yellow/Black |
| Net Weight | 19.00 lbs (8.6 Kg) |
| Load Capacity Per Axle | 32,600 lbs (14,787 Kg) |
| Load Capacity Per Tire | 16,300 lbs (7,394 Kg) |
| Length | 39 in (99.1 cm) |
| Width | 11.75 in (29.8 cm) |
| Height | 2 in (5.1 cm) |
| Maximum Channel OD | 1.25 in (3.2 cm) |
| Number of Channels | 5 |
| Connector Type | Hourglass |
| Channel Width | 1.375 in (3.5 cm) |
