Description

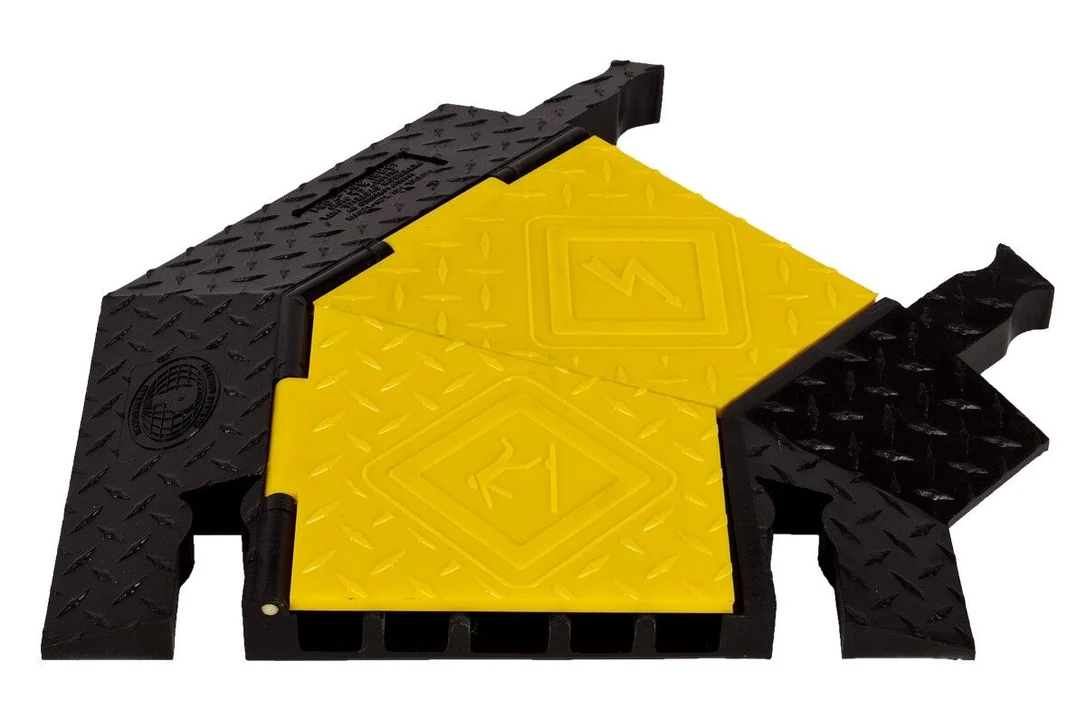

Use the 5-Channel Heavy-Duty Yellow Jacket Right Turn with Yellow Jacket5-channel cable protector with hinged lid. Provides a safe crossing in high volume traffic areas while protecting valuable electrical cables and hose lines from damage. The modular interlocking design is ideal for use in industrial, commercial, and public applications.
- Creates 45 degree right turn
- Protects cables and hoses up to 1.0″ outside dia.
- The “original” cable protector
- Dog bone connectors to extend to any desired length
- Thick lid and base allow for high-volume of traffic
- Hinged lid for easy cable placement
- Modular interlocking design
| Model No. | YJ5TR-125-Y/B |
|---|---|
| Quantity Included | 1 |
| Color | Yellow/Black |
| Net Weight | 16.50 lbs (7.5 Kg) |
| Load Capacity Per Axle | 32,600 lbs (14,787 Kg) |
| Load Capacity Per Tire | 16,300 lbs (7,394 Kg) |
| Length | 25 in (63.5 cm) |
| Width | 20 in (50.8 cm) |
| Height | 2 in (5.1 cm) |
| Maximum Channel OD | 1.325 in (3.4 cm) |
| Number of Channels | 5 |
| Connector Type | Dog Bone |
| Channel Width | 1.25 in (3.2 cm) |
