Description

The UltraCon+ fastening system is a complete family of screw anchors for light to medium-duty applications in concrete, masonry block, brick and wood base materials. The UltraCon+ is fast and easy to install and provides a neat, finished appearance. The UltraCon+ screw anchor is engineered with matched tolerance drill bits and installation tools designed to meet the needs of the user and also provide optimum performance. The UltraCon+ features a gimlet point for self drilling into wood base materials without pre-drilling. The UltraCon+ screw anchor is available in carbon steel with a Stalgard coating in several colors. Head styles include a slotted hex washer head, Philips flat head, Philips trimfit flat head and hex flange head.

Detailed Product Specifications

Manufacturer Part Number:DFM12742

Unit of Measure:BX100

Feature:Removable (reusable in wood)

Feature:Does not exert expansion forces

Feature:Good corrosion protection with stalgard coating

Feature:Several colors and finishes to match application

Feature:Gimlet point for self drilling into wood

Feature:No hole spotting required

Feature:High-low thread design for greater stability and grip

Color:Blue

Diameter:3/16 in

Drill Size:5/32 in

Drive Type:Phillips

Finish:Zinc Stalgard

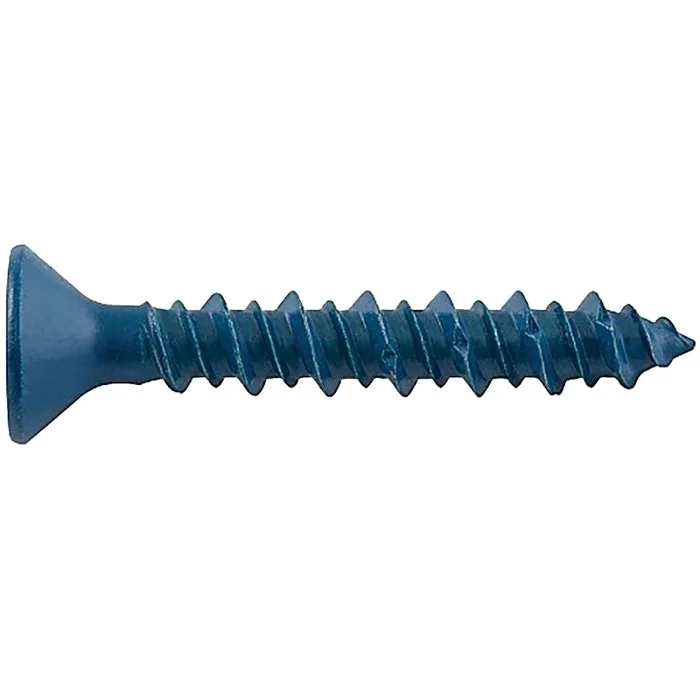

Head Type:Phillips Flat

Length:1-3/4

Material:Carbon Steel

Thread Length:1-1/2 in
