Description

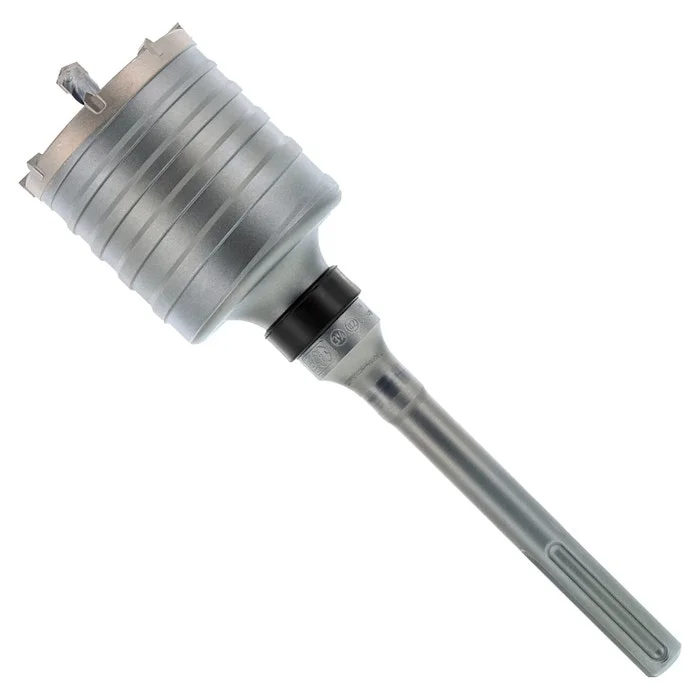

Diablo’s SDS Max carbide tipped core bit range provides one of the fastest and longest lasting coring solutions on the market for concrete applications. All-in-one design strengthens the bit from end-to-end in order to withstand the stress and impact of high-powered hammer drills in concrete. A spiral flute design removes dust faster, keeping the carbide teeth cooler for ultimate strength and durability. Optimized for maximum performance in corded and cordless SDS Max rotary hammers.

Detailed Product Specifications

Manufacturer Part Number:DMAMXCC5030

Unit of Measure:CD

Feature:Carbide teeth withstand impact and high-heat applications for superior life and productivity versus standard core bits

Feature:Spiral flute design for faster dust extraction that keeps the carbide teeth cooler for ultimate strength and durability

Feature:Peak Point Tip design for aggressive starts that produce clean, fast holes

Feature:Off-set carbide teeth produce fast, clean holes

Feature:One piece design strengthens the bit extreme impact resistance and stability

Feature:For drilling large holes up to 4 in Dia

Feature:Maximum performance in SDS Max rotary hammers

Applicable Materials:Concrete

Cutting Edge Material:Carbide

Diameter:3-1/4 in

Flute Length:7 in

Flute Type:Spiral

Overall Length:12 in

Point Type:Diamond

Shank Type:SDS Max

Suitable for:Corded and Cordless SDS Max Rotary Hammers
