Description

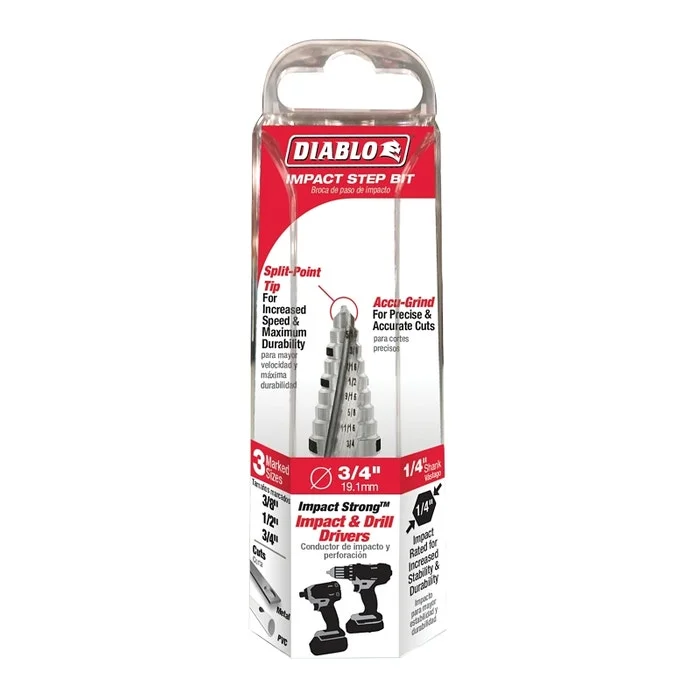

Diablo’s new step drill bits bring exclusive technology to the electrician, plumber and HVAC contractor with fast, accurate cuts and increased stability in thin metals, PVC other plastic materials. The innovative split point tip design enables a fast, on-point start resulting in increased durability and up to 4X longer life. An automated precision grinding process on each step reduces wear and delivers 2X faster cuts. Multiple hole sizes are made easy with laser etched step markings while increased step heights for common hole sizes makes drilling holes more efficient and faster. Designed with a 1/4 in hex shank, these bits are impact ready and can be used with drills and impact drivers.

Detailed Product Specifications

Manufacturer Part Number:DSD0750S09

Unit of Measure:EA

Feature:Split point tip (132 deg) makes pre-drilling obsolete and stays sharper longer resulting in increased speed, maximum durability and up to 6X longer life

Feature:Automated precision CNC grinding process delivers strict angle tolerances on each step for minimal bit wear and 2X faster cuts in drilling and hole making

Feature:Exclusive design delivers corded and cordless tool efficiency in high-speed mode for up to 75% more holes per battery charge

Feature:1/4 in hex shank allows use with drills and impact drivers

Feature:Optimized dual flute design for jam-free cuts

Feature:Increased step heights for easier drilling of common hole sizes

Feature:Easy to read, laser marked steps for drilling holes of varying sizes

Feature:Ideal for metal (up to 1/8 in THK), PVC and other plastic materials

Feature:Nine number of steps

Applicable Materials:Metal/Plastic/PVC/Steel

Diameter:3/8 to 3/4 in

Flute Type:Dual

Material:HSS

Overall Length:2-19/32 in

Point Angle:132 deg

Point Type:Split

Shank Diameter:1/4 in

Shank Type:Hex
