Description

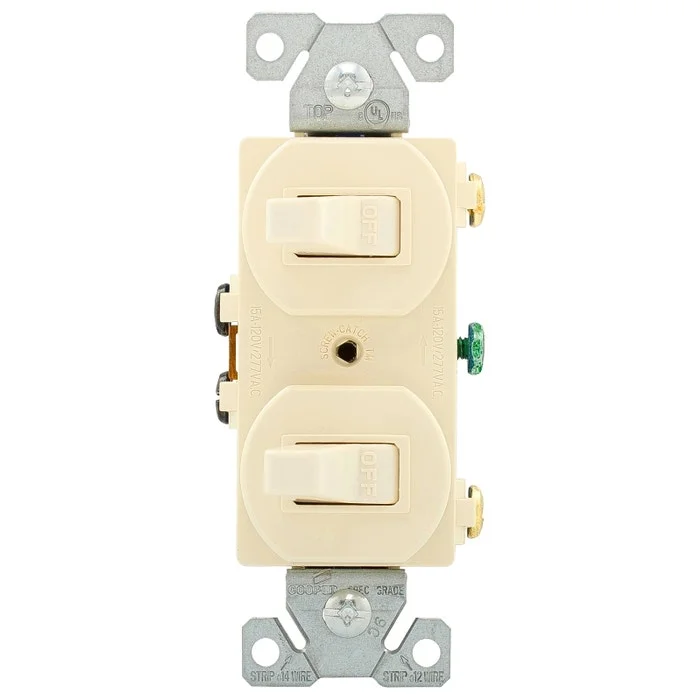

Grounding terminal screw standard. Combination switch with additional switch has 120/277 V rating, ideal for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Break-off provision for wiring both devices on same circuit or on separate circuits. Terminal screws backed out and ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Combination slot/Phillips head mounting and terminal screws. Switches meet all UL 20 requirements. UL Listed.

Detailed Product Specifications

Manufacturer Part Number:271LA

Unit of Measure:BX

Feature:Grounding terminal screw standard

Feature:Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention

Feature:Thick steel mounting strap is zinc-plated for corrosion resistance

Feature:Break-off provision for wiring both devices on same circuit or on separate circuits

Feature:Terminal screws backed out and ready for wiring

Feature:Pilot light may be wired to indicate power on or power off

Feature:Combination Phillips/slotted screw heads ensure faster installation

Actuator Type:Toggle

Color:Light Almond

Current Rating:15 A

Housing Material:Steel

Mounting Type:Strap

Number of Poles:1

Switch Operation:Back and Side

Temperature Rating:-20 to 60 deg C

Terminal Type:Screw

Voltage Rating:120/277 V
