Description

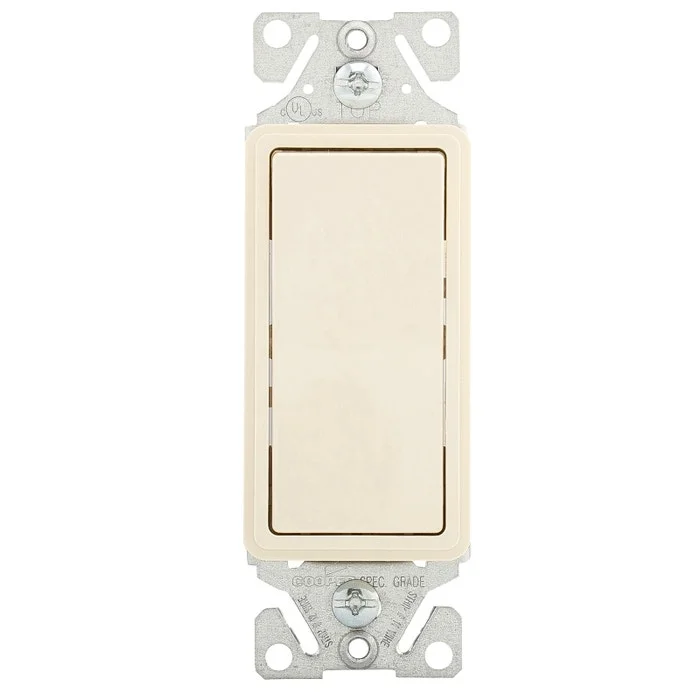

Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.

Detailed Product Specifications

Manufacturer Part Number:7501LA-BOX

Unit of Measure:BX

Feature:Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance

Feature:Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use

Feature:Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire

Feature:Push-in terminals accept #14 AWG solid wire for quick installation

Feature:Stippled ground screw terminal standard

Feature:Long, broad mounting strap virtually eliminates floating installations

Feature:Patented built-in wire stripper for #14 and #12 AWG wire to speed installation

Feature:Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility

Feature:Lighted switches glow in OFF position

Color:Light Almond

Contact Configuration:SPST

Current Rating:15 A

Dimensions:4.19 in L x 1.44 in W x 0.97 in D

Housing Material:Thermoplastic

Includes:(1) Metal Strap

Mounting Type:Strap

Temperature Rating:-20 to 60 deg C

Terminal Type:Lead Wire

Voltage Rating:120/277 V
