Description

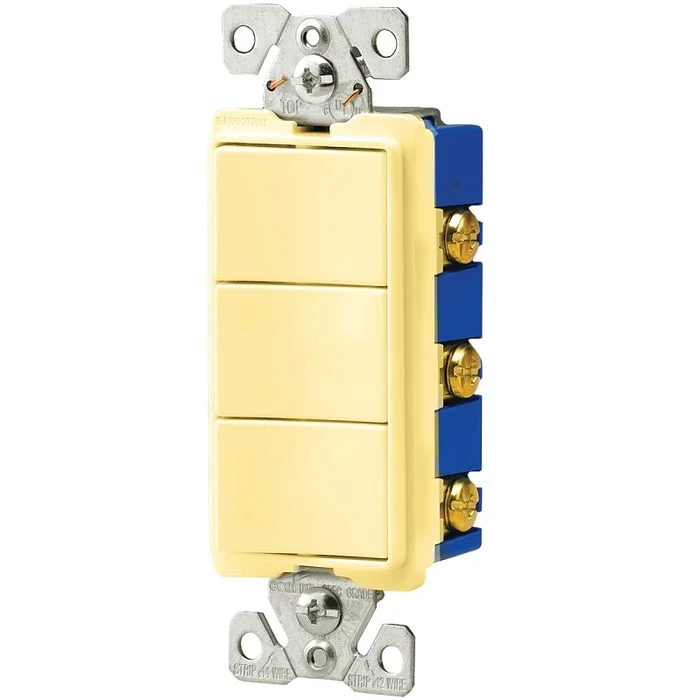

Eaton Wiring Devices Combination Switch, 120/277 V, 15 A, SPST Contact Configuration, Back Wire, Side Wire Terminal, -20 to 60 deg C, Flush Mounting, Thermoplastic Housing Material, Ivory, Dimensions: 4.19 in L x 1.3 in W x 1.08 in D

Detailed Product Specifications

Manufacturer Part Number:7729V-BOX

Unit of Measure:EA

Feature:Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance

Feature:Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use

Feature:Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings

Feature:Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

Feature:Steel mounting strap is zinc-plated for added corrosion resistance

Feature:Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire

Feature:Terminal screws are backed out and ready for wiring to enhance ease of installation

Feature:Break-off provision for wiring both devices on same circuit or on separate circuits

Feature:Decorator design features easy, smooth actuation of the rocker

Color:Ivory

Contact Configuration:SPST

Current Rating:15 A

Dimensions:4.19 in L x 1.3 in W x 1.08 in D

Housing Material:Thermoplastic

Mounting Type:Flush

Temperature Rating:-20 to 60 deg C

Terminal Type:Back Wire Side Wire

Voltage Rating:120/277 V
