Description

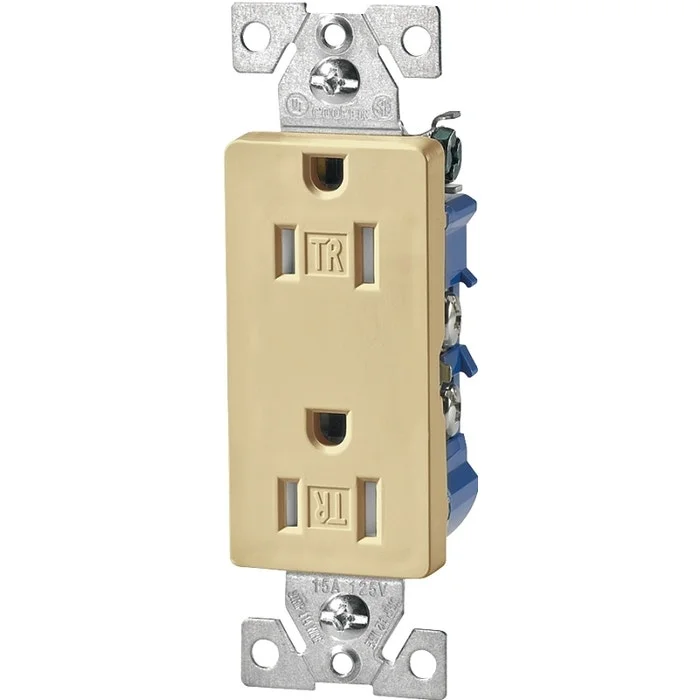

Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. “TR” designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.

Detailed Product Specifications

Manufacturer Part Number:TR1107V-BOX

Unit of Measure:EA

Feature:Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A

Feature:TR designation provides visual identification

Feature:High impact-resistant thermoplastic face and back body eliminates breakage

Feature:Patented built-in wire stripper for #12 and #14 AWG wire to speed installation

Feature:Push-in terminals accept #14 AWG solid wire for quick installation

Feature:Double-wipe ground contacts ensure long term ground retention

Feature:Side wire terminals accept up to #10 AWG solid wire

Color:Ivory

Current Rating:15 A

Dimensions:4.2 in L x 1.30 in W x 0.69 in D

Frequency Rating:60 Hz

Material:PVC

Mounting Type:Wall

NEMA Configuration:5-15R

Number of Poles:2

Number Of Wires:3

Operating Temperature:-20 to 60 deg C

Voltage Rating:125 V

Wire Size:14 to 10 AWG

Wiring Type:Push-in Side
