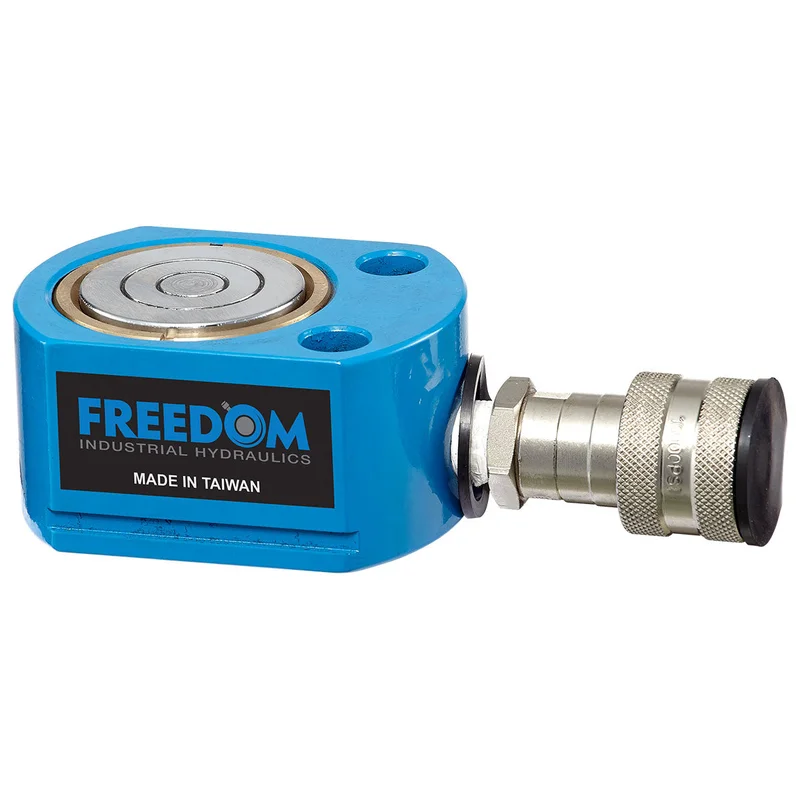

Description
- Low collapsed height for applications that
require minimal clearance in confined spaces - Plunger wiper seal keeps out contamination and debris
- Industrial grade spring for increased spring performance
- Industrial grade steel construction withstands
even the most demanding of applications - Chrome plated piston rod eliminates corrosion and rust
- 3/8” NPTF female coupler and dust cap on all models
Categories: Cylinders, Flat Body Cylinders
| Rated Capacity (Cap.) | 20 | . |
| Stroke (in.) | 0.43 | . |
| Model # | SF20 | . |
| Cylinder Effective Area (in.2) | 4.38 | . |
| Oil Capacity (in.3) | 1.9 | . |
| Collapsed Height (in.) | 2.05 | (A) |
| Extended Height (in.) | 2.48 | (B) |
| Outside Diameter (in.) | 4.02 | (C) |
| Cylinder Bore Dia. (in.) | 2.36 | (D) |
| Plunger Diameter (in.) | 2 | (E) |
| Base to Coupler Port | 0.77 | (F) |
| Saddle Diameter | 2 | (P) |
| Weight (lbs.) | 6.2 |
