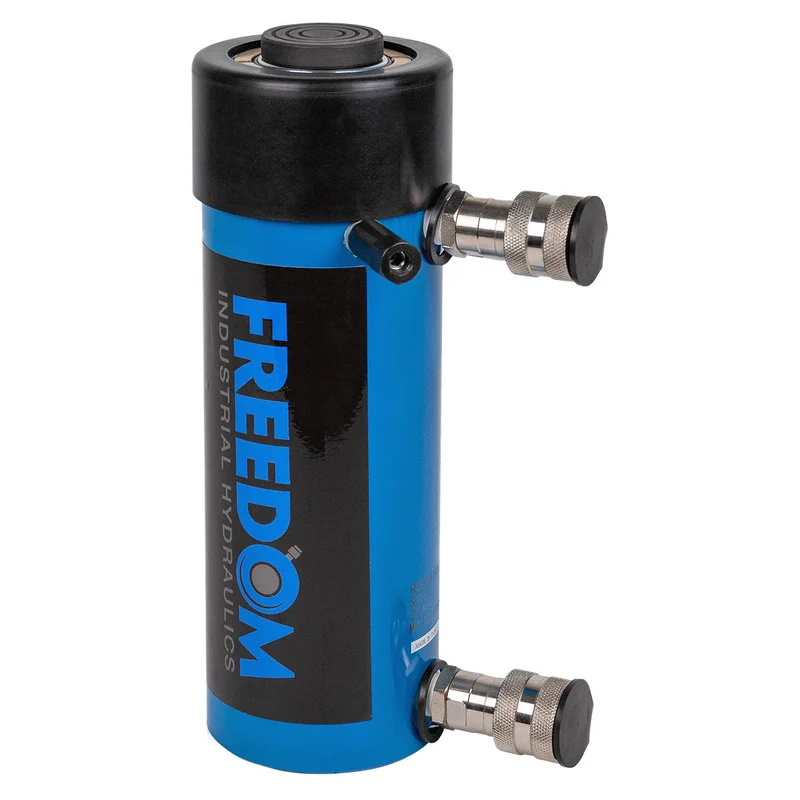

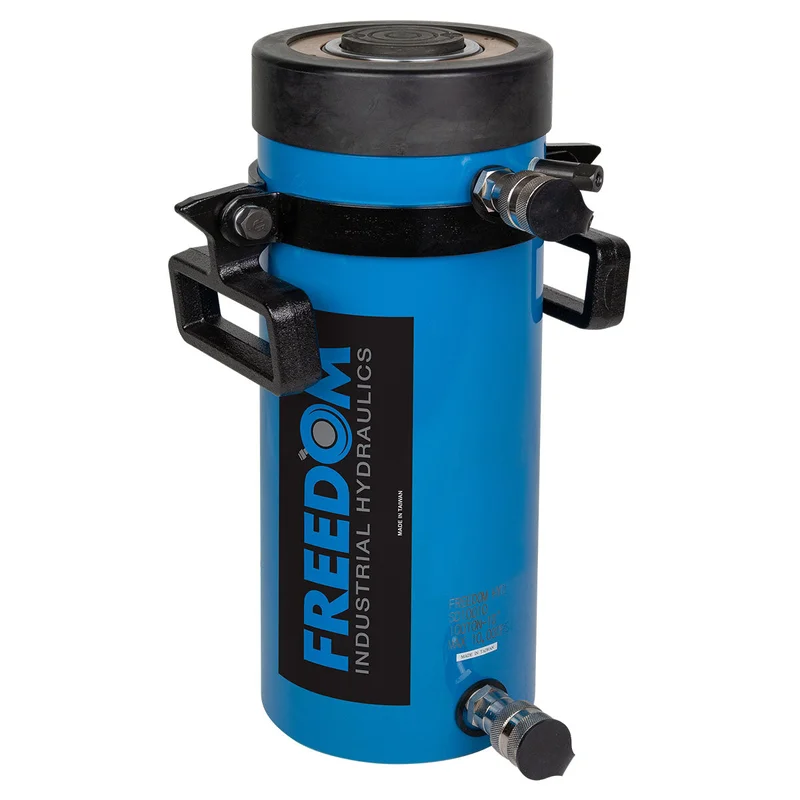

Description
- Ideal for push and pull applications
- Ideal for applications requiring rapid retraction
- Upper and lower bronze bearings for minimal wear of
cylinder rod and maximizing lifetime of cylinder - Industrial grade steel construction will withstand
even the most demanding applications - Chrome plated piston rod eliminates corrosion and rust
- Built in safety valve prevents over-pressurization
when retracting cylinder - 3/8” NPTF female couplers and dust caps on all models
Categories: Cylinders, Double Acting Cylinders, 25 Ton Capacity
| Capacity (tons) | 25 | . |
| Stroke (in.) | 6.26 | . |
| Model # | SD256 5 | . |
| Cylinder Effective Area (in.2) | 5.14 | . |
| Oil Capacity (in.3) | 32.2 | . |
| Collapsed Height (in.) | 12.42 | (A) |
| Extended Height (in.) | 18.68 | (B) |
| Outside Diameter (in.) | 4 | (C) |
| Cylinder Bore Dia. (in.) | 2.56 | (D) |
| Plunger Diameter (in.) | 2.17 | (E) |
| Base to Coupler Port (in.) | 1 | (F) |
| Saddle Distance above Cyl. (in.) | 0.39 | (G) |
| Piston Internal Thread (in.) | 1 1/2-16UNC | (H) |
| Piston Thread Length (in.) | 1 | (I) |
| . | . | . |
| Base Mounting Holes | – | . |
| Bolt Circle (in.) | – | (J) |
| – | – | (K) |
| Thread Depth (in.) | – | (L) |
| . | . | . |
| Collar Thread (in.) | 4″-12UNC | (M) |
| Collar Thread Length (in.) | 1.61 | (N) |
| Saddle Diameter (in.) | 2 | (O) |
| Weight (lbs.) | 41.45 |
