Description

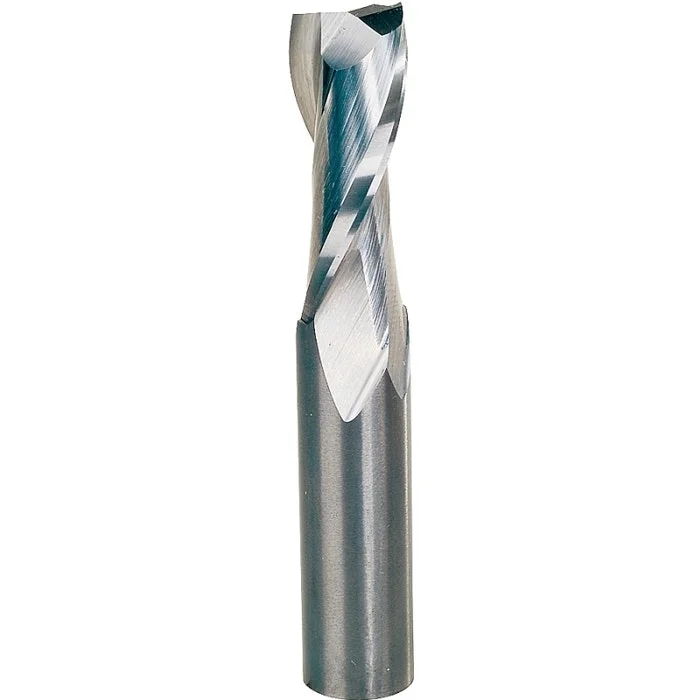

Up spiral bits combine effective chip removal with a cut that can’t be matched by standard straight bits. Computer designed flutes provide the chip removal required in production settings. Suited for cutting mortices or routing deep blind holes. Excellent for grooves and dados in all composition materials, plywood, hard wood and soft wood. Use on CNC and other automatic routers as well as hand held and table mounted portable routers.

Detailed Product Specifications

Manufacturer Part Number:75-108

Unit of Measure:EA

Feature:Freud’s solid carbide up spiral bits combine effective chip removal with a cut that can’t be matched by standard straight bits

Feature:Excellent for grooves and dadoes in all composite materials, plywoods, hardwoods and softwoods

Feature:Computer-designed flutes provide chip removal required in production settings

Cutting Depth:1-1/4 in

Material:Carbide

Overall Length:3 in

Shank Diameter:1/2 in

Suitable for:CNC and Automatic Routers Handheld and Table-Mounted Portable Routers
