Green Pin Closed Spelter Socket

Sale!

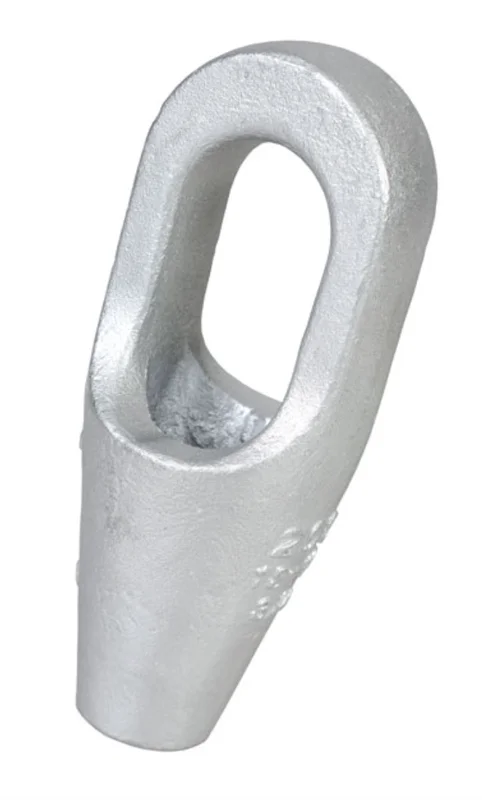

2026_05_25_1121218

Green Pin Closed Spelter Socket

Original price was: $92.00.Current price is: $27.60.

M.B.L./Wire Diameter:

SKU: 6681397624913 Category:

Description

Green Pin Closed Spelter Socket

  • High tensile steel.
  • Hot dipped galvanised finish.
  • Temperature range -20ºC up to +200°C.
  • Marked with CE, manufacturers ID, size, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available

Specification

SKU Number M.B.L. Wire Rope Dia A B C D E F G Weight
t mm mm mm mm mm mm mm mm kgs
286-813-1 296 8 6 – 7 101 37 22 40 11 13 9 0.3
286-813-2 297 12 8 – 10 119 43 25 48 14 17.5 12 0.5
286-813-3 298 20 11 – 13 140 52 30 58 18 23.5 15 0.75
286-813-4 299 25 14 – 16 162 68 37 66 21 26 17.5 1.5
286-813-5 200 40 18 – 19 194 76 42 78 27 32 21.5 2.4
286-813-6 201 55 20 – 22 224 92 47 90 33 38 24 3.6
286-813-7 204 75 23 – 26 253 104 57 103 36 44 28 5.8
286-813-8 207 90 27 – 30 282 114 63 116 39 51 32 7
286-813-9 212 125 31 – 36 312 127 70 130 43 57 38 10.5
286-813-10 215 150 37 – 39 358 136 79 155 51 63 41 13
286-813-11 217 170 40 – 42 390 146 83 171 54 70 44 17
286-813-12 219 225 43 – 48 443 171 93 198 55 76 51 26
286-813-13 222 280 49 – 54 502 193 100 224 62 82 57 37.5
286-813-14 224 360 55 – 60 548 216 112 247 73 92 63 50
286-813-15 226 425 61 – 68 597 241 140 270 70 102 73 65
286-813-16 227 460 69 – 75 644 273 159 286 70 124 79 94
286-813-17 228 560 76 – 80 686 292 171 298 83 133 86 115
286-813-18 229 625 81 – 86 743 311 184 311 102 146 92 145
286-813-19 230 720 87 – 93 788 330 197 330 102 159 99 168
286-813-20 231 875 94 – 102 845 362 216 356 108 178 108 210
286-813-21 233 1,200 108 – 115 1000 405 235 425 125 190 125 330
286-813-22 240 1,300 120 – 130 1150 450 260 525 125 200 143 500

Additional information

mycustom

M.B.L./Wire Diameter#8t / 6-7mm, 12t / 8-10mm, 20t / 11-13mm, 25t / 14-16mm, 40t / 18-19mm, 55t / 20-22mm, 75t / 23-26mm, 90t / 27-30mm, 125t / 31-36mm, 150t / 37-39mm, 170t / 40-42mm, 225t / 43-48mm, 280t / 49-54mm, 360t / 55-60mm, 425t / 61-68mm, 460t / 69-75mm, 560t / 76-80mm, 625t / 81-86mm, 720t / 87-93mm, 875t / 94-102mm, 1.200t / 108-115mm
