Description

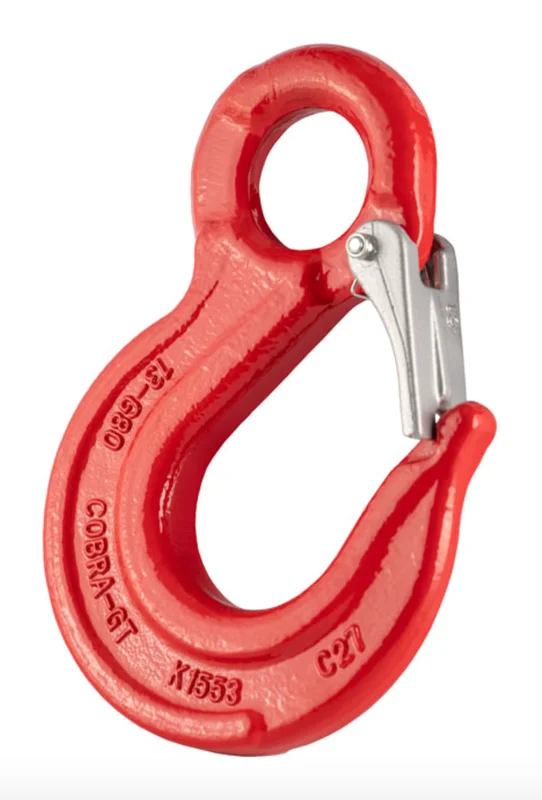

Grade 80 Eye Sling Hook with Safety Catch
- Grade 80 alloy steel, quenched and tempered.
- Red painted finish.
- Meets the W.L.L. performance requirements of BS EN 1677-2.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification available DoC
| SKU | Part No | Chain Dia | A | B | C | D | E | H | L | L1 | M | Ø | Ø1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-117-1 | K1551 | 7/8 | 49.5 | 23 | 59 | 38 | 30 | 23 | 133 | 98.5 | 17 | 25 | 11 |
| 286-117-2 | K1552 | 10 | 71 | 33 | 76 | 46 | 34 | 32 | 167 | 120 | 22 | 38 | 15 |
| 286-117-3 | K1553 | 13 | 89.5 | 44 | 102 | 62 | 39 | 42.5 | 213 | 150 | 26 | 43 | 19 |
| 286-117-4 | K1554 | 16 | 98 | 52 | 110 | 70 | 46 | 48 | 255 | 183.5 | 34 | 50 | 23 |
| 286-117-5 | K1555 | 20 | 121.5 | 60 | 137.5 | 80.4 | 48 | 58.5 | 304 | 221 | 42 | 63 | 24 |
Technical Data
| SKU | Part No. | Chain Dia | W.L.L. | M.P.L. | M.B.L. | Packing Qty | Weight |
|---|---|---|---|---|---|---|---|
| mm | t | t | t | kgs | |||
| 286-117-1 | K1551 | 7/8 | 2 | 4 | 8 | 30 | 0.4 |
| 286-117-2 | K1552 | 10 | 3.15 | 6.3 | 12.6 | 20 | 0.9 |
| 286-117-3 | K1553 | 13 | 5.3 | 10.6 | 21.2 | 9 | 1.94 |
| 286-117-4 | K1554 | 16 | 8 | 16 | 32 | 6 | 2.89 |
| 286-117-5 | K1555 | 20 | 12.5 | 25 | 50 | 2 | 5.7 |
