GT Viper Vertical Plate Lifting Clamp CD Type to BS-EN 13155

Original price was: $190.00.Current price is: $47.50.

SKU: 6614098018385 Category: Lifting Clamp

Description

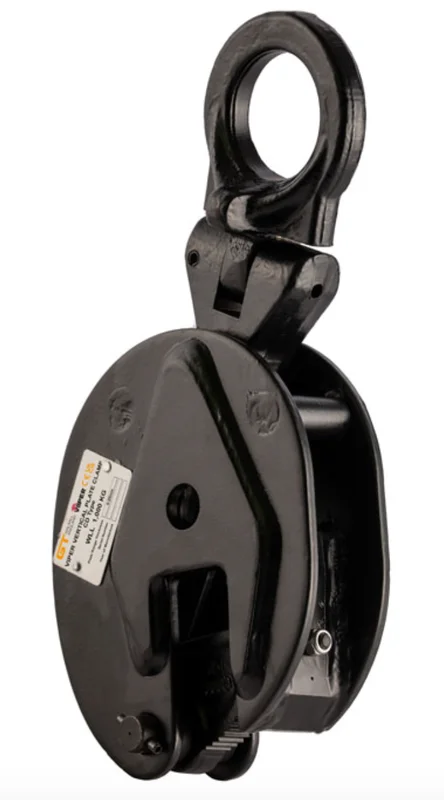

LGT Viper Vertical Plate Lifting Clamp CD Type

Specially hardened steel is used in both the serrated jaws.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13155.
Minimum breaking load is 4 times the W.L.L.
The steel plate lifted should be under the HRC 37 (HB 345).
Lifting under 20% of the rated capacity loading is strictly forbidden.
The GT Viper plate clamp is designed to lift one plate at a time.
Marked in accordance with BS EN 13155.
Certification available

Specification


SKU	Capacity		Jaw Opening	A	B	C	D	E	F	G	H	K	Weight
	kgs		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
286-525-1	500		0 – 15	25	37	128	212	30	98	40	29	10	2
286-525-2	1,000		0 – 20	33	63	170	295	48	145	54	42	12	5
286-525-3	2,000		0 – 25	35	76	205	370	68	175	56	54	18	8
286-525-4	3,000		0 – 25	45	83	237	418	76	215	78	59	20	15
286-525-5	5,000		0 – 30	55	90	262	480	76	232	90	59	20	23

Additional information

mycustom	Size#500kg Capacity & Jaw 0-15mm, 1.000kg Capacity & Jaw 0-20mm, 2.000kg Capacity & Jaw 0-25mm, 3.000kg Capacity & Jaw 0-30mm, 5.000kg Capacity & Jaw 0-50mm
