Description

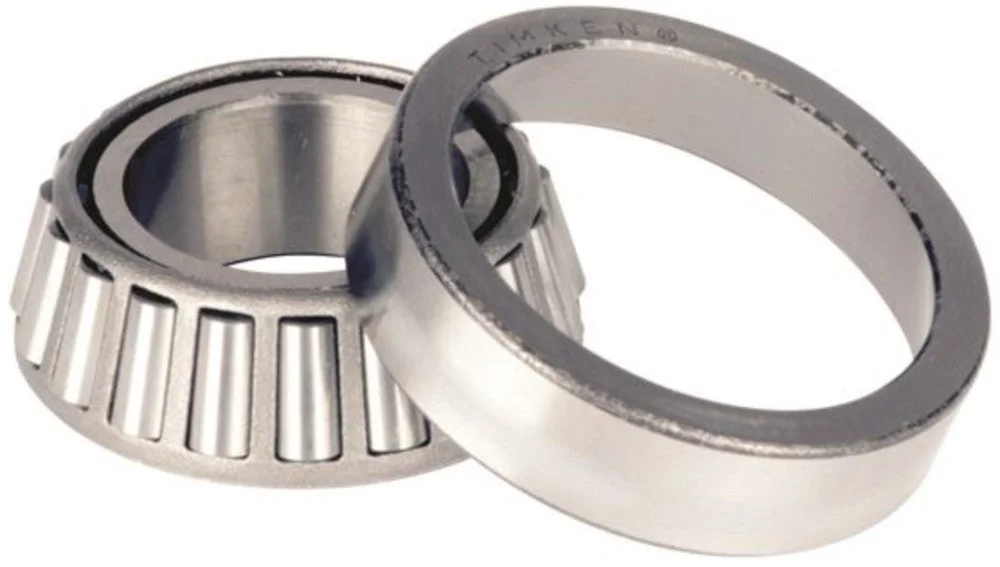

Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:
Enhanced performance in demanding applications.

Specifications
Series: HM804800
Cone part number: HM804848
Cup part number: HM804810
Bearing weight: 1.0kg

Dimensions
Inside diameter d: 48.412mm
Outside diameter D: 95.250mm
Width T: 29.370mm
Cone width B: 23.020mm
Cup width C: 30.163mm

Basic load ratings
C0 – Static Radial Rating: 157000 N / 35400 lbf
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 35700 N / 8030 lbf
