Description

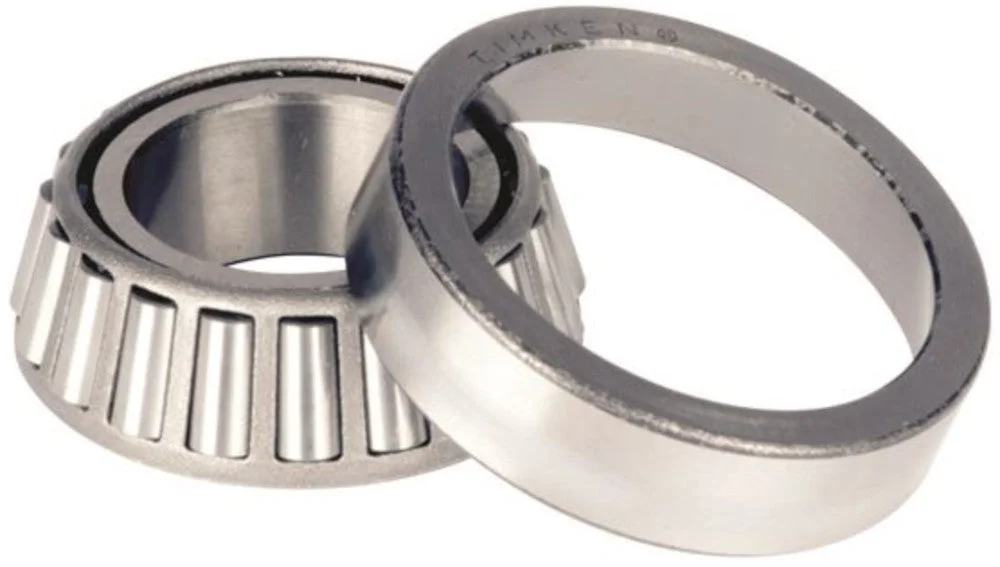

Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:
Enhanced performance in demanding applications.

Specifications
Series: HM88600
Cone part number: HM88648
Cup part number: HM88610
Bearing weight: 0.5kg

Dimensions
Inside diameter d: 35.717mm
Outside diameter D: 72.233mm
Width T: 25.400mm
Cone width B: 19.842mm
Cup width C: 25.400mm

Basic load ratings
C0 – Static Radial Rating: 94200 N / 21200 lbf
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 18600 N / 4180 lbf
