Description

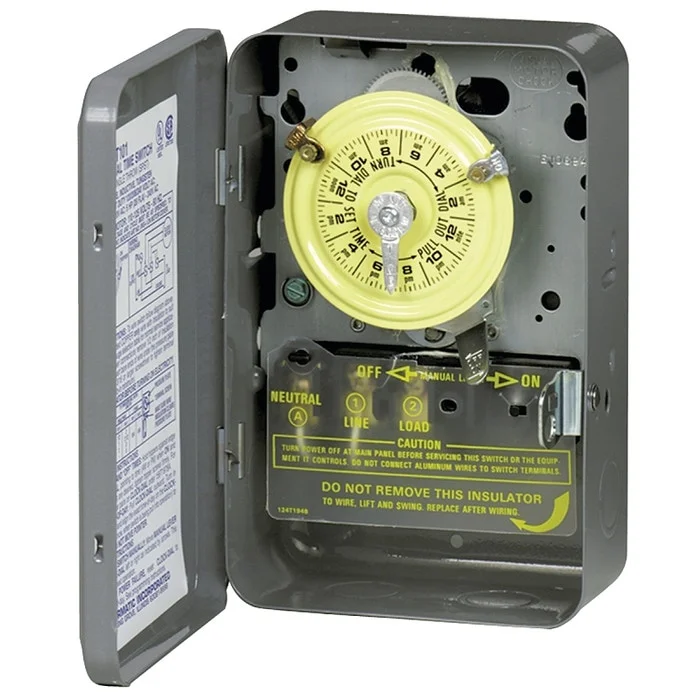

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 a per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.

Detailed Product Specifications

Manufacturer Part Number:T101

Unit of Measure:EA

Feature:Direct 24 hrs control of most loads

Feature:Up to 12 On/Off operations each day with minimum On/Off times of 1 hr

Feature:Manual override

Feature:One on and one off tripper included

Feature:40 A, 120 to 240 VAC, 60 Hz resistive, 40 A, 120 to 240 VAC, 60 Hz inductive, 16 A, 277 VAC, 60 Hz electronic ballast, 40 A, 120 to 240 VAC, 60 Hz tungsten

Color:Gray

Current Rating:40 A

Cycle Time:12 On/Off Cycles Per Day

Depth:3-7/16 in

Frequency Rating:60 Hz

Height:8.0 in

HP Rating:2 hp

Includes:(1) On/Off Tripper

Installation Type:Wall

Number of Poles:1

Suitable for:Blowers Pumps Conveyors Electric Fences Fans Filters Indoor/Outdoor Lighting Pool Heaters and Signs

Temperature Rating:-40 to 130 deg F

Time Setting:24 hr

Type:Heavy-Duty

Voltage Rating:120 V

Wattage Rating:3 W

Width:5-1/8 in
