Description

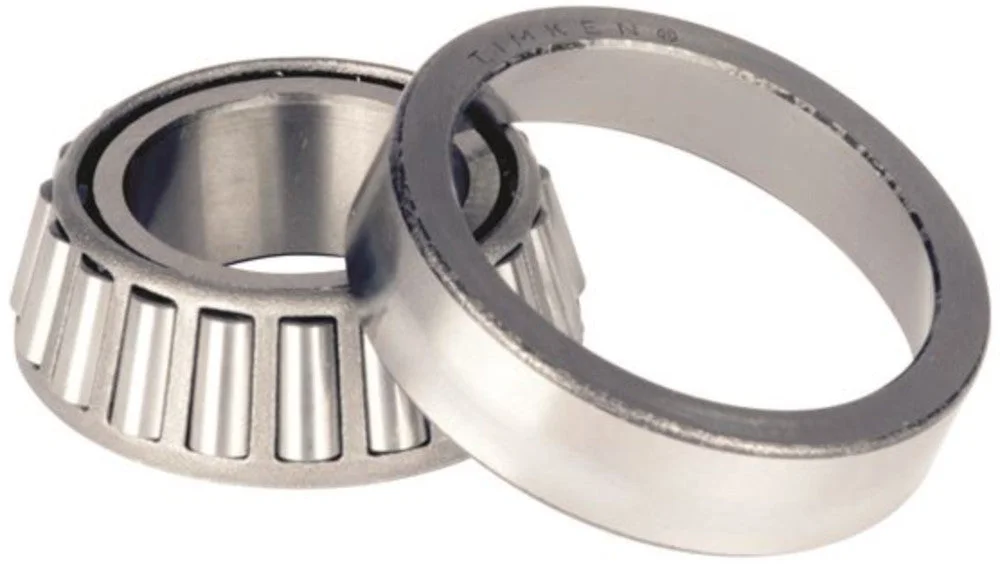

Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:
Enhanced performance in demanding applications.

Specifications
Series: M716600
Cone part number: JM716649
Cup part number: JM716610
Bearing weight: 1.4kg

Dimensions
Inside diameter d: 85mm
Outside diameter D: 130mm
Width T: 29mm
Cone width B: 24mm
Cup width C: 30mm

Basic load ratings
C0 – Static Radial Rating: 245000 N / 55100 lbf
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 31800 N / 7150 lbf
