Description

The 2000 Series pocket door frame is designed to carry heavy solid core doors (up to 400 lb each) in standard 2 x 4 timber or steel framed stud walls. The 2000 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2000 is a versatile frame and can be adapted for use in non-standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

Detailed Product Specifications

Manufacturer Part Number:203080PF

Unit of Measure:EA

Feature:Nylon encapsulated sealed ball bearing wheel

Feature:12 to 14 ga steel components with zinc trivalent plated

Feature:6063T6 extruded aluminum I-Beam track with mill-aluminum finish

Feature:Spruce, pine or fir frame header

Feature:Split stud construction is galvanized steel wrapped spruce, pine or fir

Door Thickness:1-3/4 in

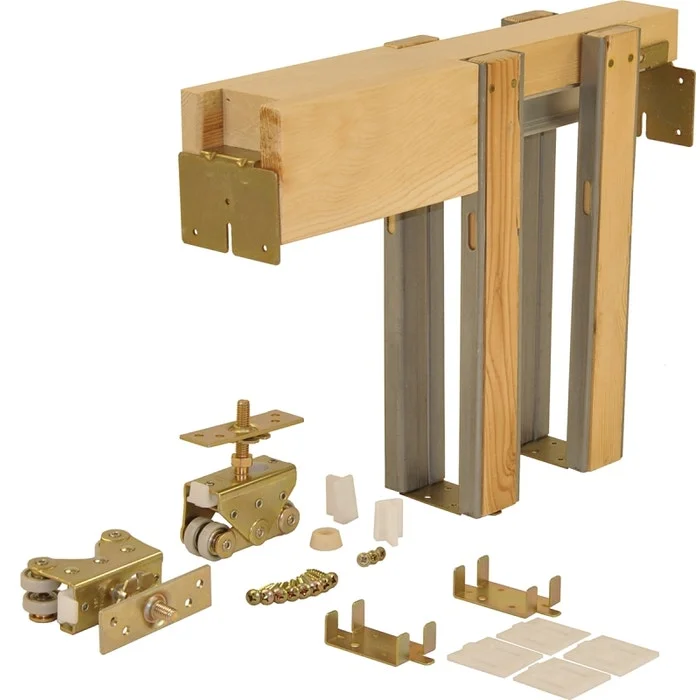

Includes:Header Assembly (2) Ball Bearing Door Hangers (1) Door Bumper (1) Pocket Door Guide (2) 1-3/8 in Door Floor Brackets (2) 1-3/4 in Door Floor Brackets (4) 1-3/4 in Door Split Stud Shims (4) Steel Wrapped Split Studs and Hardware Mounting Screws

Maximum Door Width:36 in

Maximum Weight per Door:400 lb

Type:Commercial-Grade
