DESCRIPTION

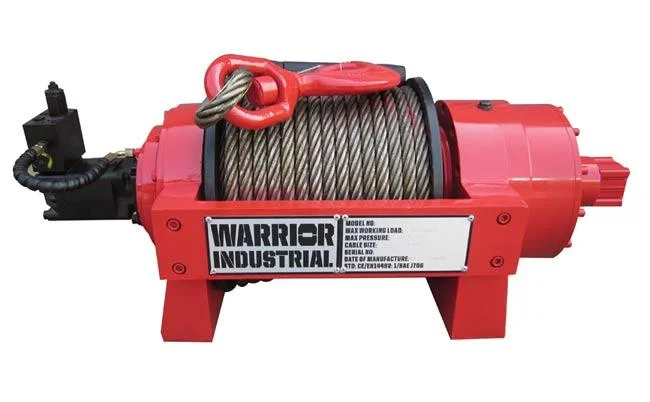

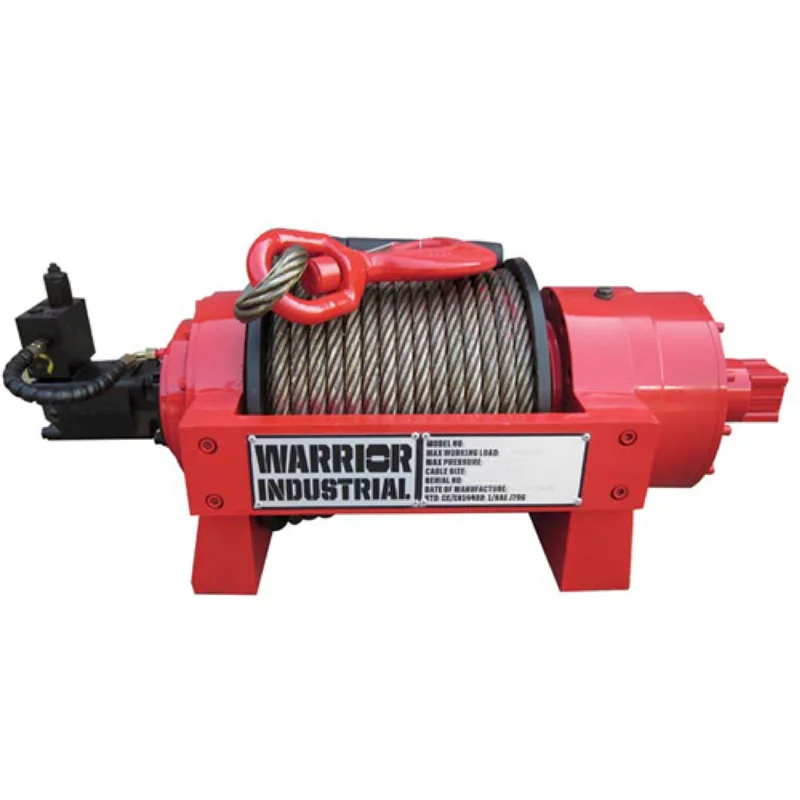

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard
Outstanding Features
- Full Float Heavy Duty Planetary Gearing
- Multi Disc Friction Brake
- High Torque Industrial Motor
- Air and Manual Clutch Operation
- Heavy Duty Rope Tensioner as Standard
- Minimum 10:1 Rope/Drum Ratio
- Balance Valve as Standard
ACCESSORIES INCLUDED
Specification
| Rated Line Pull | 22000 lbs (10000 kg) |
|---|---|
| Gearing | 39:1 |
| Braking Action | Auto Hydraulic |
| Drum Size – Dia x L | 138 x 316mm (5.43 x 12.44 in) |
| Cable – Dia x L | 15mm x 48m (0.59 in x 157 ft) |
| Dimensions | 830 x 390 x 320mm (32.6 x 15.3 x 12.6 in) |
| Mounting Pattern | 431 x 64 / 192 mm (16.9 x 2.5/7.5 in) |
| Weight kg | 188 kg (414.4 lbs) |
| Clutch | Air Clutch |
| Certification |
CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 22046 (10000) |
| 2 | 16889 (7661) |
| 3 | 14615 (6630) |
| 4 |
12881 (5843) |
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Flow L/min (G/min) |
Pressure Mpa |
|---|---|---|---|
| 0 | 5.9 (1.8) | 15 | 25 |
| 4000 (1814) | 11.7(3.6) | 30 | 42 |
| 8000 (3629) | 19.6 (6.0) | 50 | 85 |
| 15000 (6804) | 23.6 (7.2) | 60 | 140 |
| 22046 (10000) | 29.7 (9.0) | 75 | 175 |
