Description

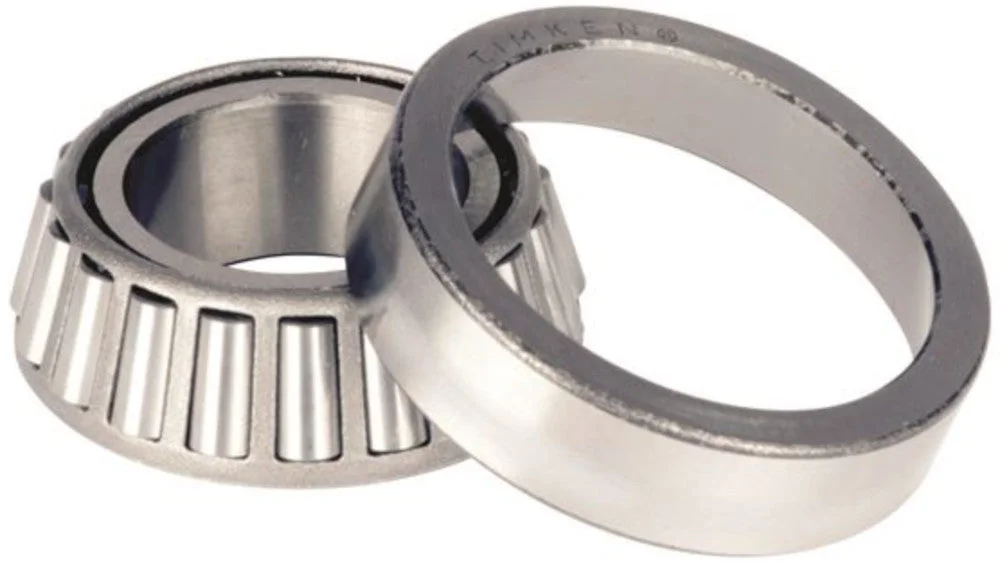

Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:
Enhanced performance in demanding applications.

Specifications
Series: L44649/L44610
Cone part number: L44649
Cup part number: L44610
Bearing weight: 0.12 Kg

Dimensions
d – Bore: 26.988 mm – 1.0625 inch
D – Cup outer diameter: 50.292 mm – 1.9800 inch
B – Cone width: 14.224 mm – 0.5600 inch
C – Cup width: 10.668 mm – 0.4200 inch
T – Bearing width: 14.224 mm – 0.5600 inch

Basic load ratings
C90 – Dynamic Radial Rating (90 million revolutions)4: 9230 N
C1 – Dynamic Radial Rating (1 million revolutions)5: 35600 N
C0 – Static Radial Rating: 32900 N
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 5910 N
