Description

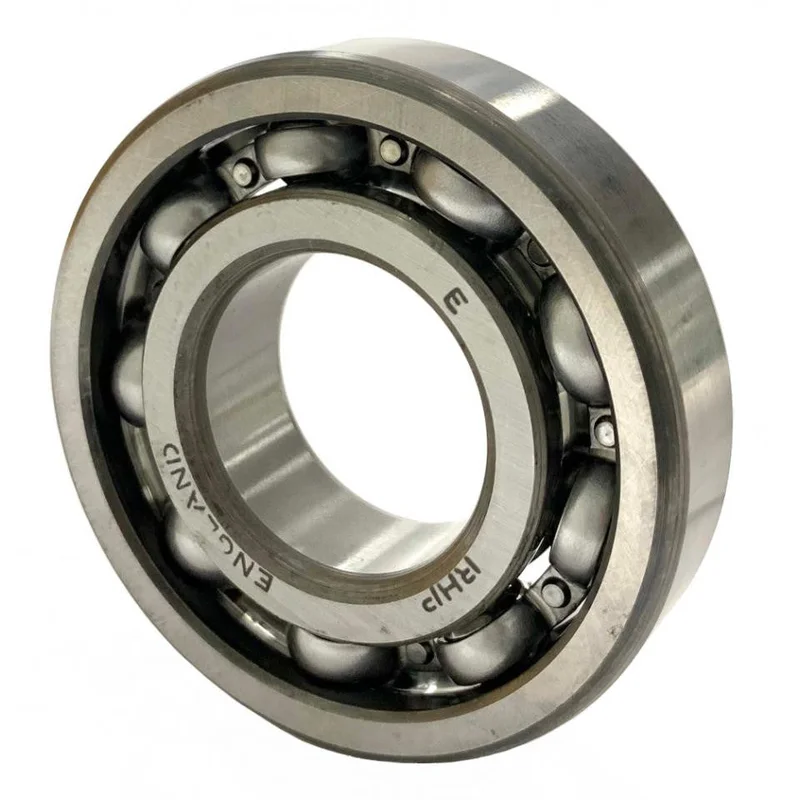

The most popular bearing type to be found in a wide range of operating conditions, from the simplest to the most complex. Designed to carry both radial and axial loads and for easy fitting and maintenance. Most other ball bearings are a variation of this type.

Applications
Transmissions › Electric Motors & Generators › Electrical Appliances › Pumps & Compressors › Blowers & Fans › Speed Changers › Gear Boxes & Drives › Woodworking Machinery › Lawn & Garden Equipment › Turbines › Farm Machinery › Construction Machinery › Oil Field Machinery › Elevators › Conveying Equipment › Hoists & Cranes › Power Hand Tools › Industrial Valves › Rolling Mill Machinery › Textile Machinery › Paper Machinery › Printing Machinery › Food Products Machinery › Packaging Machinery › Industrial Clutches › Slip Joints

Boundary Dimensions (Inch)
d: Inside dia: 3″ inch
D: Outside dia: 7″ inch
B: Width: 1.9/16″ inch

Basic Load Ratings
Dynamic 138000 C
Static 96500 Co

Limiting Speeds
Grease 4000 rpm
Oil 5400 rpm

Temperature Ranges
Open (unsealed) bearings -40Â °C to +125Â °C (+150Â °C peak)

J Pressed steel cage

Mass
4,25 kg
