Description

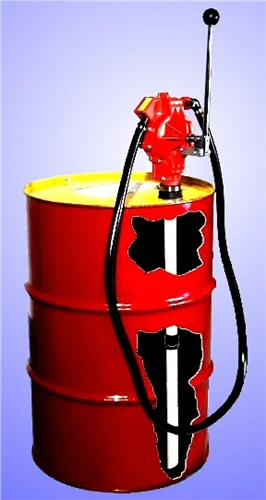

Morse 28-5Bv Drum Hand Pump. General Guide: Use With Some Chlorinated Solvents, Acids, Aromatics, Xylene Up To 2000 Ssu Viscosity

Double-action piston manual drum / barrel pumps are self priming, delivering on both the forward and the back stroke. It takes less than 5 cycles to yield a gallon (3.8 liters).

Each Morse 55-gallon drum (208 liter barrel) hand pump is made in the same style and has the same action. They vary only in their materials of construction, consisting of specific polymers and elastomers for resistance to certain types of chemicals (please refer to the drum pump chart below).

Morse manual drum and barrel pumps provide a controlled discharge rate of approximately 1 quart (.95 liter) on complete forward and backward cycle at 10 psi over 24 feet (7.3 m). They fit the NPT (National Pipe Thread) of the 2″ (5 cm) bung on 55 or 30 gallon (208 or 114 liter) steel drum.

Adaptors are also available to use Morse 55-gallon (208 liter) barrel pumps with the buttress thread of the 2″ (5 cm) bung on your plastic barrels.

• Suction lift tested for 15 feet (4.6 m) minimum
• Discharge head up to 25 feet (7.3 m)
• Output head pressure is up to 10.83 psi
• 1″ (2.54 cm) NPT suction tube
• 3/4″ (1.9 cm) NPT discharge tube
• Two position drum pump handle
  • Handle can be mounted above the drum hand pump extending 20.5″ (52 cm) above the bung when upright.
  • Mount handle below the drum hand pump for easier operation from below with the drum on a truck or platform.

Item ships UPS/Fedex Ground, large quantities ship via LTL freight, freight quotes are calculated offline

Freight costs are calculated offline for all Morse items requiring LTL freight.After receiving an order we will contact you to approve shipping costs before we move forward.To obtain a shipping quote or government, corporate or large order quote please contact: sales with the quantity, part number and order destination.

Morse is “The Specialist in Drum Handling Equipment.” They provide 55-gallon (208 liter) drum handling solutions, such as hand drum trucks, mobile drum handlers, forklift attachments including heavy-duty models capacities up to 2500 Lb. (1136 kg). Many models are available in stainless steel.

Since 1923 Morse has introduced nearly every major innovation in drum handling equipment.Morse is committed to manufacturing our products in the USA.
