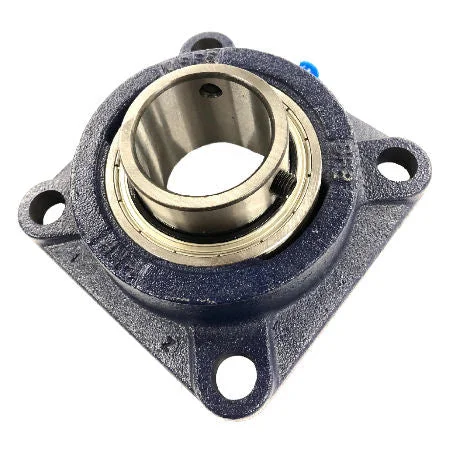

MSF2.1/2 RHP 4 Bolt Cast Iron Flange Bearing Unit 2.1/2 inch Bore

Sale!
2026_05_25_1084442

MSF2.1/2 RHP 4 Bolt Cast Iron Flange Bearing Unit 2.1/2 inch Bore

Original price was: $200.00.Current price is: $50.00.

SKU: 7067843166298 Category:

Description

These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 2.1/2 inch
RHP designation: MSF2.1/2
Basic bearing insert: 1070
Casting group: 8

Dimensions (mm)
L: 187.5
H: 155.5
J: 149.22
G: 16
A: 47.6
A1: 77.72
A4: 18.0
B: 74.60
S: 30.24

ISO Load ratings (newtons)
Dynamic: 61000
Static: 45000

Rec max speed: 2450 rev/min

Mass: 6.8 kg
