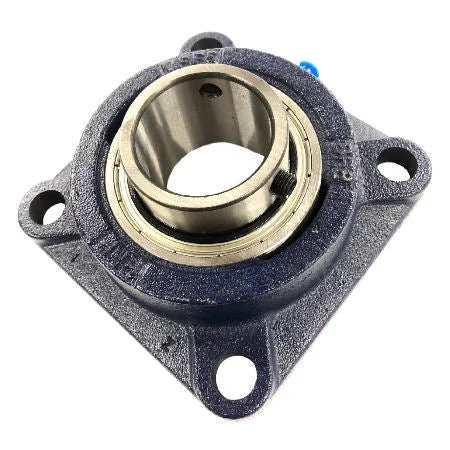

MSF3.1/4 RHP 4 Bolt Cast Iron Flange Bearing Unit 3.1/4 inch Bore

Sale!
2026_05_25_1084500

MSF3.1/4 RHP 4 Bolt Cast Iron Flange Bearing Unit 3.1/4 inch Bore

Original price was: $391.00.Current price is: $78.20.

SKU: 7067843526746 Category:

Description

These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 3.1/4 inch
RHP designation: MSF3.1/4
Basic bearing insert: 1085
Casting group: 11

Dimensions (mm)
L: 213.5
H: 184.0
J: 171.45
G: 20
A: 54.3
A1: 89.64
A4: 26.0
B: 85.70
S: 34.15

ISO Load ratings (newtons)
Dynamic: 83000
Static: 64000

Rec max speed: 2000 rev/min

Mass: 11.1 kg
