Description

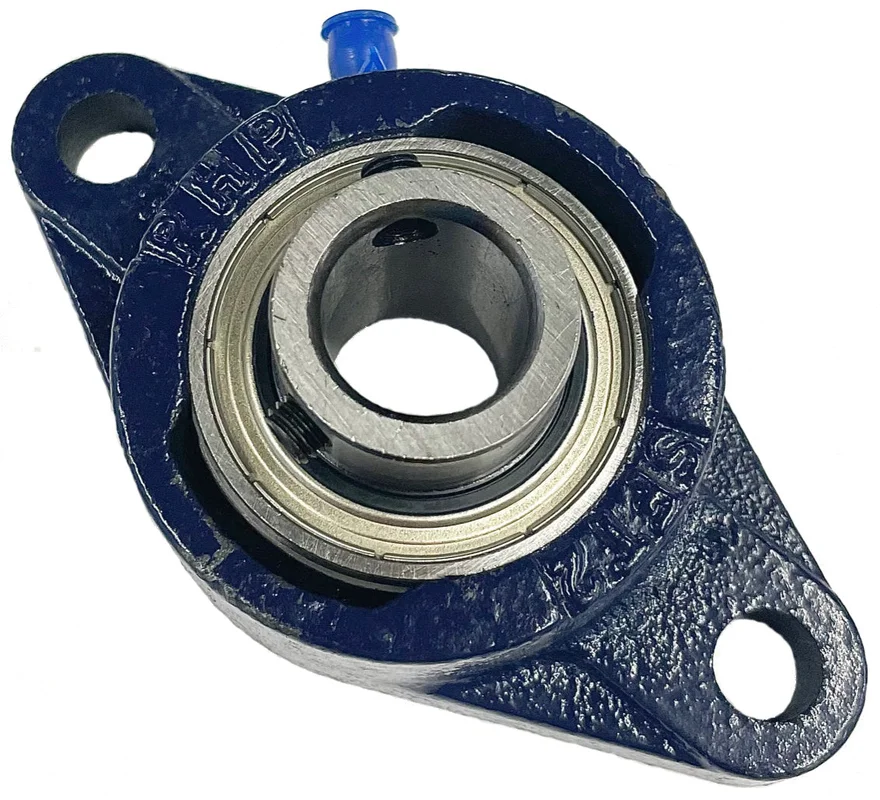

These bearing housings have oval flanges which can be easily installed onto a machine with two bolts. This type of bearing unit is suitable where mounting space is limited or where it is necessary to minimize the distance between shafts. The distance between bolt holes of an oval flange type is generally equal to the distance between bolt holes diagonal position of square flange type.

Shaft diameter: 50mm
RHP designation: MSFT50
Basic bearing insert: 1055
Casting group: 6

Dimensions (mm)
L: 127.0
H: 215.9
J: 184.00
G: 16
A: 43.7
A1: 64.31
A4: 17.5
B: 55.60
S: 22.24

ISO Load ratings (newtons)
Dynamic: 43500
Static: 29200

Rec max speed: 3100 rev/min

Mass: 3.5 kg
