Description

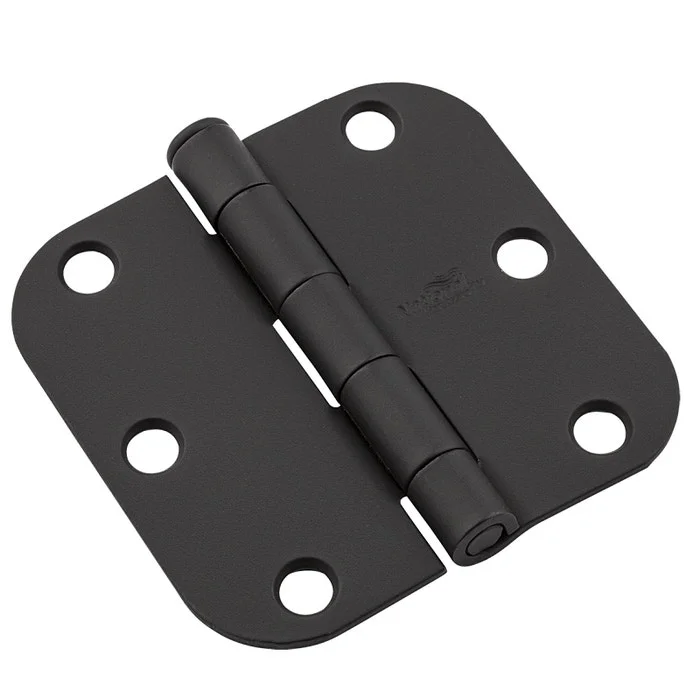

National Hardware 512 Door Butt Hinge, 50 lb Weight, Door Leaf Height: 3 in, Door Leaf Thickness: 0.08 ga, Frame Leaf Height: 3 in, Frame Leaf Thickness: 0.08 ga, Number of Knuckles: 5, Pin Type: Removable, Pin Diameter: 7/16 in, Orientation Type: Left, Reversible, Right, Mortise, Screw Mounting, Number of Mounting Holes: 6, Hole Spacing: 2-13/16, 2-1/8 in, Corner Radius: 5/8 in, Steel, Black, Dimensions: 3-13/16 in H x 3-1/2 in W, Includes: Mounting Hardware

Detailed Product Specifications

Manufacturer Part Number:N830-427

Unit of Measure:BAG

Feature:Heavy-gauge cold-rolled steel for added strength

Feature:Flush pin for finished appearance

Feature:Five knuckle, full mortise design

Feature:5/8 in radius round corners

Feature:Screw holes are countersunk

Feature:Removable pin for easier installation

Color:Black

Corner Radius:5/8 in

Dimensions:3-13/16 in H x 3-1/2 in W

Door Leaf Height:3 in

Door Leaf Thickness:0.08 ga

Frame Leaf Height:3 in

Frame Leaf Thickness:0.08 ga

Hole Spacing:2-13/16 2-1/8 in

Includes:Mounting Hardware

Material:Steel

Mounting Type:Mortise Screw

Number of Knuckles:5

Number of Mounting Holes:6

Orientation Type:Left Reversible Right

Pin Diameter:7/16 in

Pin Type:Removable

Weight Capacity:50 lb
