Description

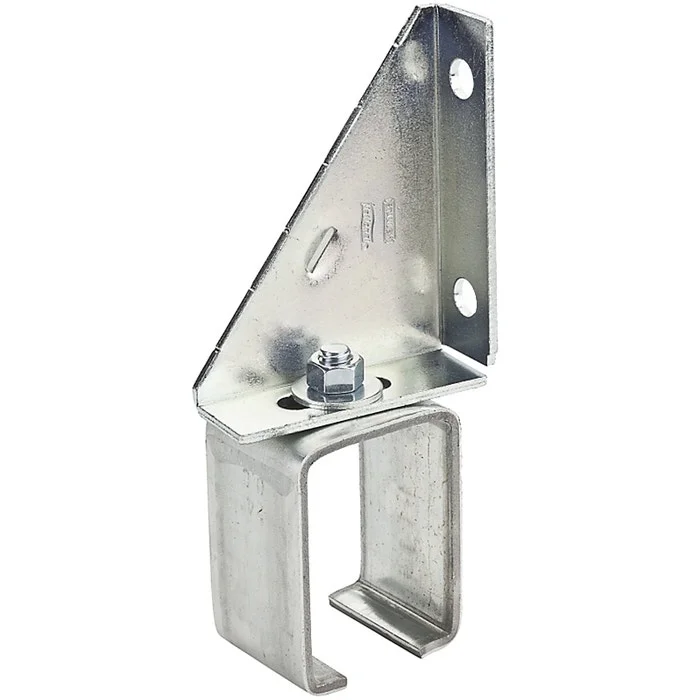

Designed for mounting #5114 or #5116 box rail. Includes 2 lag bolts, carriage bolt and nut. BHMA A138.18. Suitable for use on corrugated metal siding due to narrow mounting surface on sliding door systems. Adjustable to bring rail closer or further away from building. 300 lb safe working load. 7.12 in L x 3.25 in W x 2 in D. Can be used with flashing with the 5151 flashing bracket.

Detailed Product Specifications

Manufacturer Part Number:N104-638

Unit of Measure:EA

Feature:Adjustable to bring rail closer or further away from building

Feature:For use on corrugated metal siding due to narrow mounting surface

Dimensions:3-1/4 in W x 1-3/4 in D x 7-1/8 in H

Finish:Galvanized

Includes:(2) Lag Bolts Carriage Bolt and Nut

Material:Steel

Suitable for:5114 5116 Box Rail 5151 Flashing Bracket

Type:Single
