Description

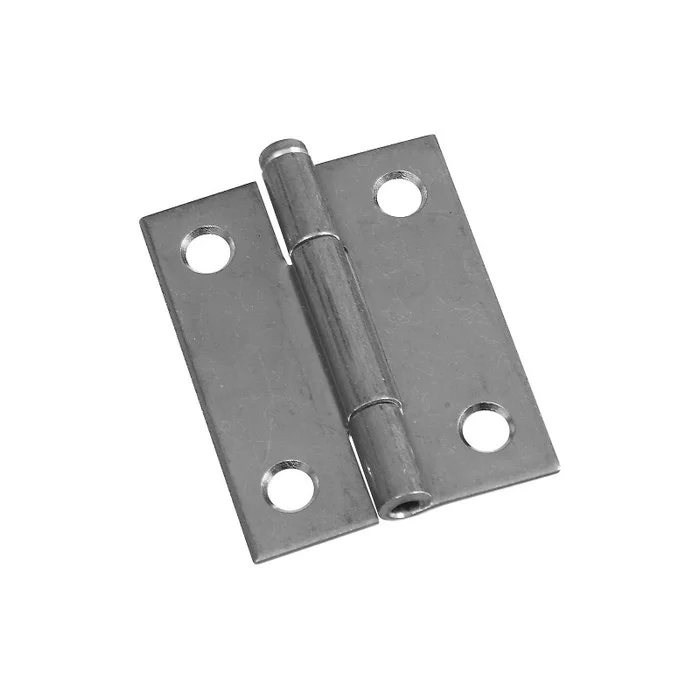

National Hardware Narrow Hinge, 10 lb Weight, Door Leaf Width: 2 in, Door Leaf Thickness: 0.056 in, Frame Leaf Width: 2 in, Frame Leaf Thickness: 0.056 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.128 in, Full Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.218 in, Hole Spacing: 1.437 in, Steel, Zinc, Dimensions: 1.564 in L x 2 in W

Detailed Product Specifications

Manufacturer Part Number:N141-838

Unit of Measure:CD

Feature:Swaged for mortise installations

Feature:Loose pin allows doors to be removed without removing hinge

Dimensions:1.564 in L x 2 in W

Door Leaf Thickness:0.056 in

Door Leaf Width:2 in

Finish:Zinc

Frame Leaf Thickness:0.056 in

Frame Leaf Width:2 in

Hole Spacing:1.437 in

Material:Steel

Mounting Hole Diameter:0.218 in

Mounting Type:Full Mortise

Number of Knuckles:5

Number of Mounting Holes:4

Pin Diameter:0.128 in

Pin Type:Removable Loose

Weight Capacity:10 lb
