Description

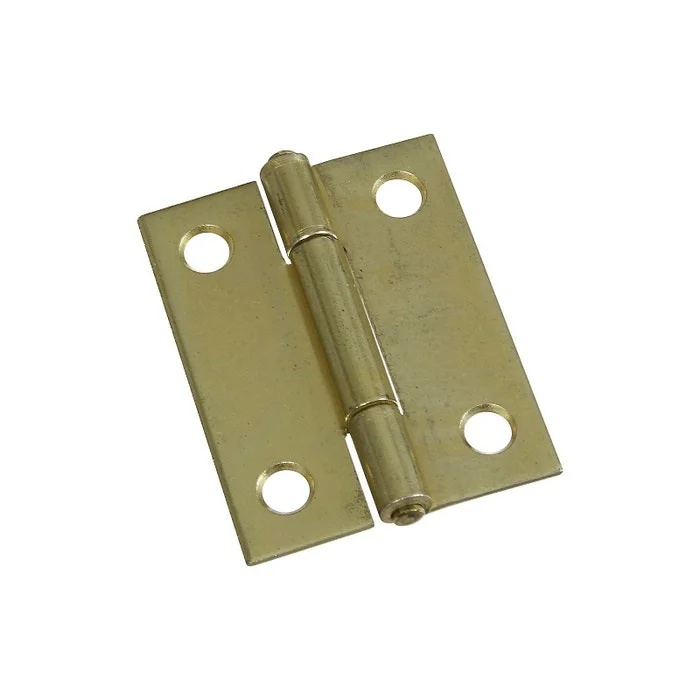

National Hardware Narrow Hinge, 10 lb Weight, Door Leaf Width: 2 in, Door Leaf Thickness: 0.056 in, Frame Leaf Width: 2 in, Frame Leaf Thickness: 0.056 in, Number of Knuckles: 3, Pin Type: Fast Spun, Pin Diameter: 0.128 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.218 in, Hole Spacing: 1.437 in, Steel, Brass, Dimensions: 1.564 in L x 2 in W

Detailed Product Specifications

Manufacturer Part Number:N146-175

Unit of Measure:CD 2

Feature:Swaged for mortise installations

Feature:Non-removable pin is for added security

Feature:Tight pin allows for right or left hand applications

Dimensions:1.564 in L x 2 in W

Door Leaf Thickness:0.056 in

Door Leaf Width:2 in

Finish:Brass

Frame Leaf Thickness:0.056 in

Frame Leaf Width:2 in

Hole Spacing:1.437 in

Material:Steel

Mounting Hole Diameter:0.218 in

Mounting Type:Mortise

Number of Knuckles:3

Number of Mounting Holes:4

Orientation Type:Left Right

Pin Diameter:0.128 in

Pin Type:Fast Spun

Weight Capacity:10 lb
