Description

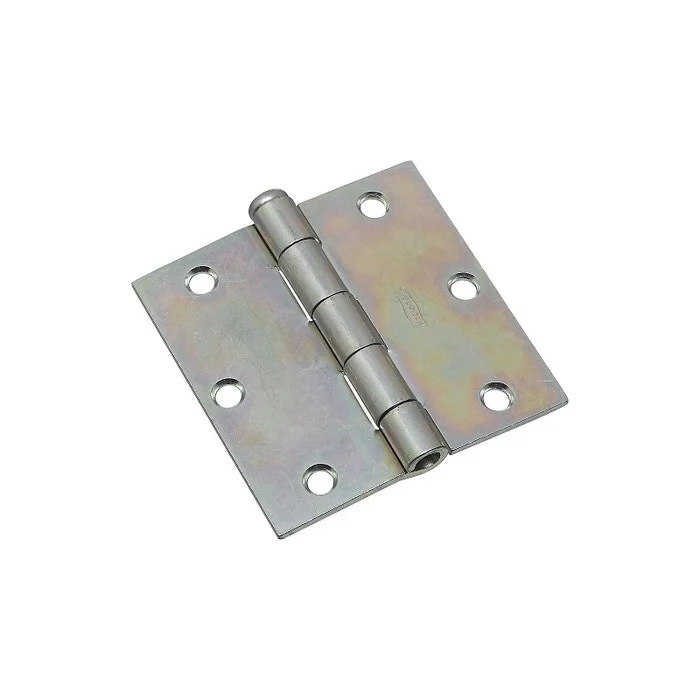

National Hardware Broad Hinge, 70 lb Weight, Door Leaf Width: 3-1/2 in, Door Leaf Thickness: 0.11 in, Frame Leaf Width: 3-1/2 in, Frame Leaf Thickness: 0.11 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.27 in, Full Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.23 in, Hole Spacing: 1.38 in, Cold Rolled Steel, Zinc, Dimensions: 3-1/2 in L x 3-1/2 in W

Detailed Product Specifications

Manufacturer Part Number:N195-669

Unit of Measure:CD 2

Feature:Swaged for mortise installations

Feature:Loose pin allows doors to be removed without removing hinge

Dimensions:3-1/2 in L x 3-1/2 in W

Door Leaf Thickness:0.11 in

Door Leaf Width:3-1/2 in

Finish:Zinc

Frame Leaf Thickness:0.11 in

Frame Leaf Width:3-1/2 in

Hole Spacing:1.38 in

Material:Cold Rolled Steel

Mounting Hole Diameter:0.23 in

Mounting Type:Full Mortise

Number of Knuckles:5

Number of Mounting Holes:6

Pin Diameter:0.27 in

Pin Type:Removable Loose

Weight Capacity:70 lb
