Description

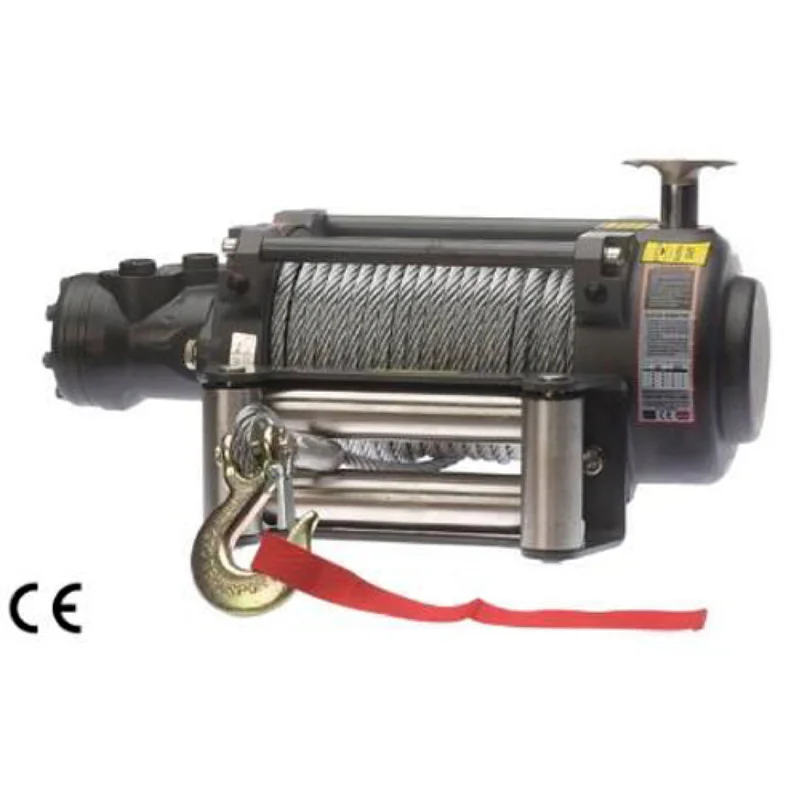

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.
Ref: 161-38-2
Features
- Rugged High Torque Motor
- Patented Heavy Duty Gearing
- Integral, Automatic Failsafe Brake
- Spring Engaged Manual Freespool
- Stainless Steel Fairlead and Fittings
- Rugged and compact for Long Lif
Accessories included
Specification
| Rated Line Pull | 15000 lbs (6804 kg) |
|---|---|
| Motor | Hydraulic Dis 80 ml/r |
| Gearing | 33.4:1 |
| Braking Action | Auto in the drum |
| Drum Size – Dia x L | 89 x 217mm (3.5 x 8.54 in) |
| Cable – Dia x L | 12mm x 26.5m (0.47 in x 87 ft) |
| Dimensions | 554 x 226 x 262mm (21.81 x 8.9 x 10.3 in) |
| Mounting Pattern | 254 x 114.3 mm (10 x 4.5 in) |
| Weight kg | 68.8 kg (152 lbs) |
| Max Flow L/min | 45 |
| Max Pressure Mpa | 12.5 |
| Clutch | Pull & Turn |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 15000 (6804) | 18.0 (5.5) |
| 2 | 12120 (5498) | 41.7 (12.4) |
| 3 | 10168 (4612) | 65.9 (20.1) |
| 4 | 8757 (3972) | 86.9 (26.5) |
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Flow L/min (G/min) |
Pressure Mpa |
|---|---|---|---|
| 0 | 1.6 (0.5) | 5 | 2.0 |
| 5000 (2268) | 3.3 (1.0) | 10 | 4.3 |
| 10000 (4536) | 6.6 (2.0) | 20 | 8.7 |
| 12000 (5443) | 9.8 (3.0) | 30 | 10.0 |
| 15000 (6804) | 19.7 (6.0) | 60 | 13.0 |
Downloads
Warrior NH 15000 Winch User Manual
Warrior NH 15000 Technical Diagram
Warrior NH Series Brochure
