Description

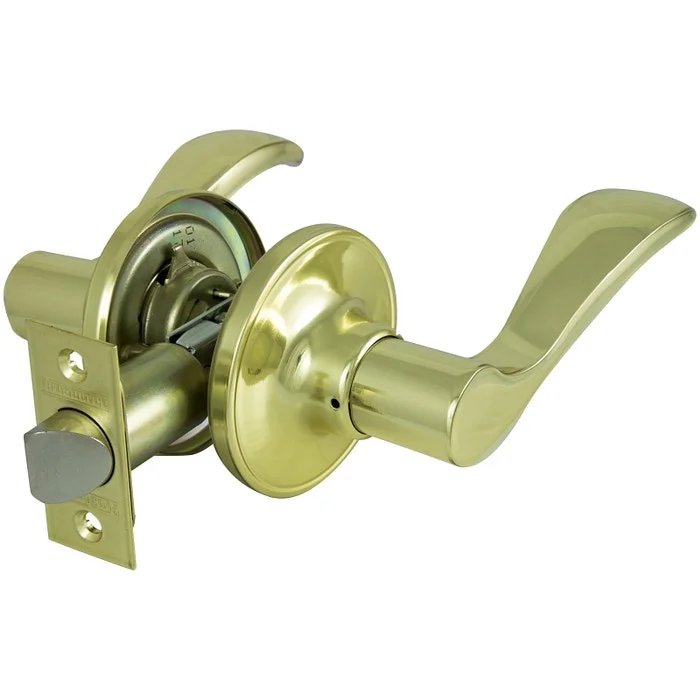

The leverset are for hall and closet doors or all interior doors where a simple latch is all that is required. Both levers always free, no locking mechanism. The leverset has a reversible handing and an adjustable six-way latch and radius round corner strike.

Detailed Product Specifications

Manufacturer Part Number:LYE703V-PS

Unit of Measure:CD

Feature:For residential use

Feature:1-3/8 to 1-3/4 in door thickness

Feature:Polished bass finish

Backset Size:2-3/8 x 2-3/4 in

Bolt Throw Size:1/2 in

Cross Bore Diameter:2-1/8 in

Dimensions:478 x 380 x 283 mm

Door Handing:Reversible

Edge Bore Diameter:1 in

Faceplate Size:1 x 2-1/4 in

Key Type:Non-Keyed

Latch Type:6-Way

Material:Zinc

Rose/Base Dimensions:65.7 mm

Security Grade:3

Strike Size:44.8 x 57 mm

Strike Type:Full Lip Round Corner

Throw Length:1/2 in
